Haitian 1000-ton Injection Molding Machine

Screw Diameter: 100mm, 110mm, 120mm, 130mm
Injection Weight (PS): 3431g, 4151g, 4950g, 5798g
Clamp Tonnage: 10000KN
Space Between Tie Bars: 1090X1090mm
Max.Mold Height: 1100mm
Machine Dimension(L×W×H): 11.4X2.68X2.81m
Machine Weight: 47.5t

Share:

Product Selling points

High-Performance Haitian 1000-Ton Injection Molding Machine

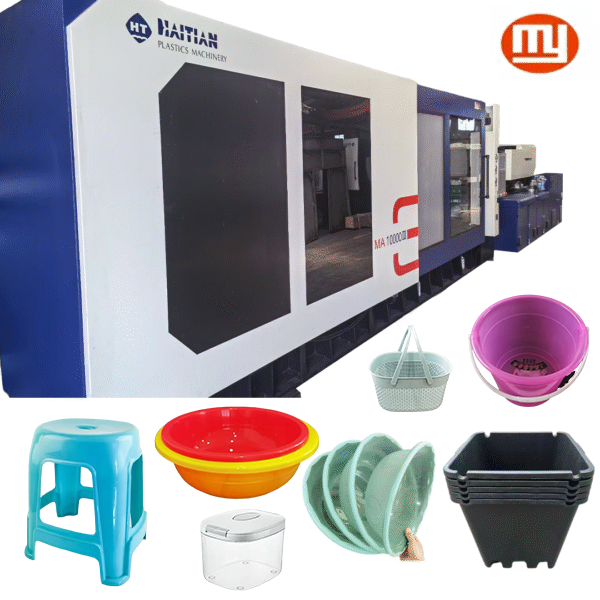

The Haitian MA10000III 1000-ton injection molding machine is a reliable second-hand solution engineered for large-scale and high-precision plastic manufacturing. With a powerful clamping force of 10,000 kN (1000 tons), it is designed to handle large molds and complex plastic components with excellent stability and accuracy.

Energy-Efficient Servo Drive Technology

Equipped with an advanced servo drive system, this Haitian 1000-ton injection molding machine delivers outstanding energy efficiency. Compared to traditional hydraulic machines, energy consumption can be reduced by 40% to 80%, while maintaining consistent molding performance. The low-noise operation also creates a more comfortable and efficient production environment.

Ideal for Large and Precision Plastic Products

This machine is widely used in industries such as automotive components, large household appliances, logistics pallets, and industrial containers. Its combination of high tonnage, precision control, and stable operation makes it an ideal choice for producing large and structurally demanding plastic products.

Tested Core Components & On-Site Inspection Available

All core components undergo rigorous inspection and testing to ensure long-term reliability and stable operation. On-site inspection and trial testing are available, allowing buyers to verify machine performance and condition before purchase, ensuring confidence in every investment.

Machine Details



Technical Parameters

CategoryParameterABCD









Injection Unit

Screw Diameter100110120130
Screw L/D Ratio24.22220.218.6
Shot Size (Theoretical)3770456254296371
Injection Weight (PS)3431415149505798
Injection Rate70385010121188
Injection Pressure211174146125
Plasticizing Capacity (ps)95.4115.5137.4161.3
Screw Speed0 – 110







Clamping Unit

Clamp Tonnage10000
Toggle Stroke1100
Space Between Tie Bars1090X1090
Max.Mold Height1100
Min. Mold Height500
Ejector Stroke320
Ejector Tonnage215







Others

Max. Pump Pressure16
Pump Motor Power37+55
Heater Power68.75
Machine Dimension (L×W×H)11.4×2.68×2.81
Machine Weight47.5
Hopper Capacity200
Oil Tank Capacity1480
