Haitian 90-ton Injection Molding Machine

Screw Diameter: 32mm、36mm、40mm
Injection Weight (PS): 110g、139g、171g
Clamp Tonnage: 860KN
Space Between Tie Bars: 360X360mm
Max.Mold Height: 360mm
Machine Dimension(L×W×H): 4.35X1.13X1.9m
Machine Weight: 3t

Share:

Product Selling points

Engineered to streamline the manufacture of small and medium-sized molds, our available inventory of Haitian 90-ton injection molding machines delivers exceptional repeatability. This tonnage class provides stable, rigid clamping forces required for precision applications across the electronics components, medical packaging, consumer household goods, and automotive trim industries. Factories can count on seamless, continuous cycles without structural or dimensional quality fluctuations.

Advanced Servo System for Maximum Energy Savings

Cut your operational overhead significantly without sacrificing injection speed. The integrated, high-performance servo motor architecture automatically adapts to the varying power requirements of a long production cycle:

  • Drastic Cost Reductions: Reduces factory energy consumption by 20% to 80% compared to traditional, non-servo hydraulic machinery.

  • Operational Stability: Ensures instantaneous hydraulic response times, smooth platen movements, and consistent pressure retention during intensive high-speed injection phases.

Versatile Manufacturing Application Scenarios

The Haitian 90T series represents a highly flexible balancing point between cost, floor footprint, and manufacturing versatility. Whether you are expanding an existing production line or replacing aging, inefficient equipment, this machine easily processes diverse plastic resins (PP, PE, ABS, PS) with tight tolerances, giving your business a rapid return on investment.

Looking for a Reliable Used Haitian Machine Without the Risk?
Do not gamble on unverified machinery brokers. Contact Manyi today to receive full technical specs, actual machine running videos, and a certified inspection report for our current 90-ton Haitian stock. 📥 Request Machine Running Video & Price Quote

Machine Details

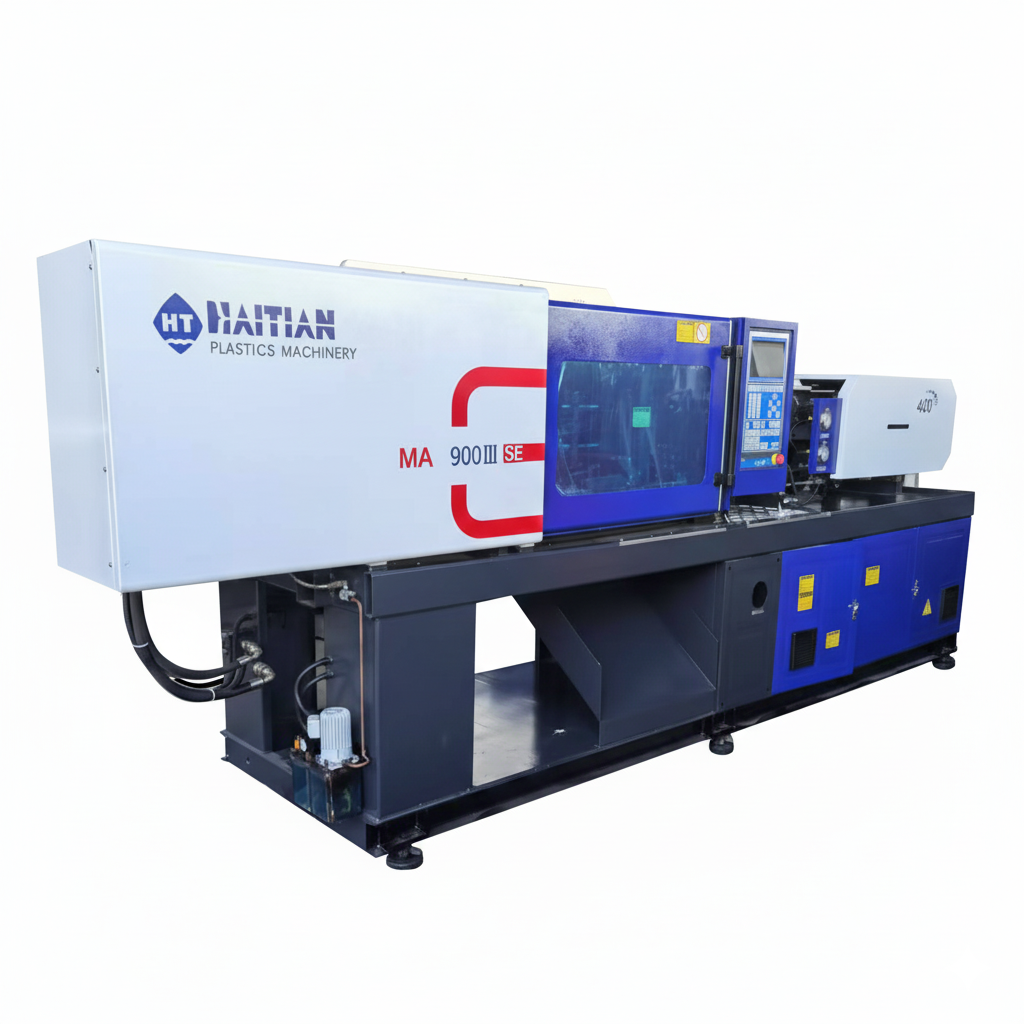

Used Haitian 90-ton injection molding machine

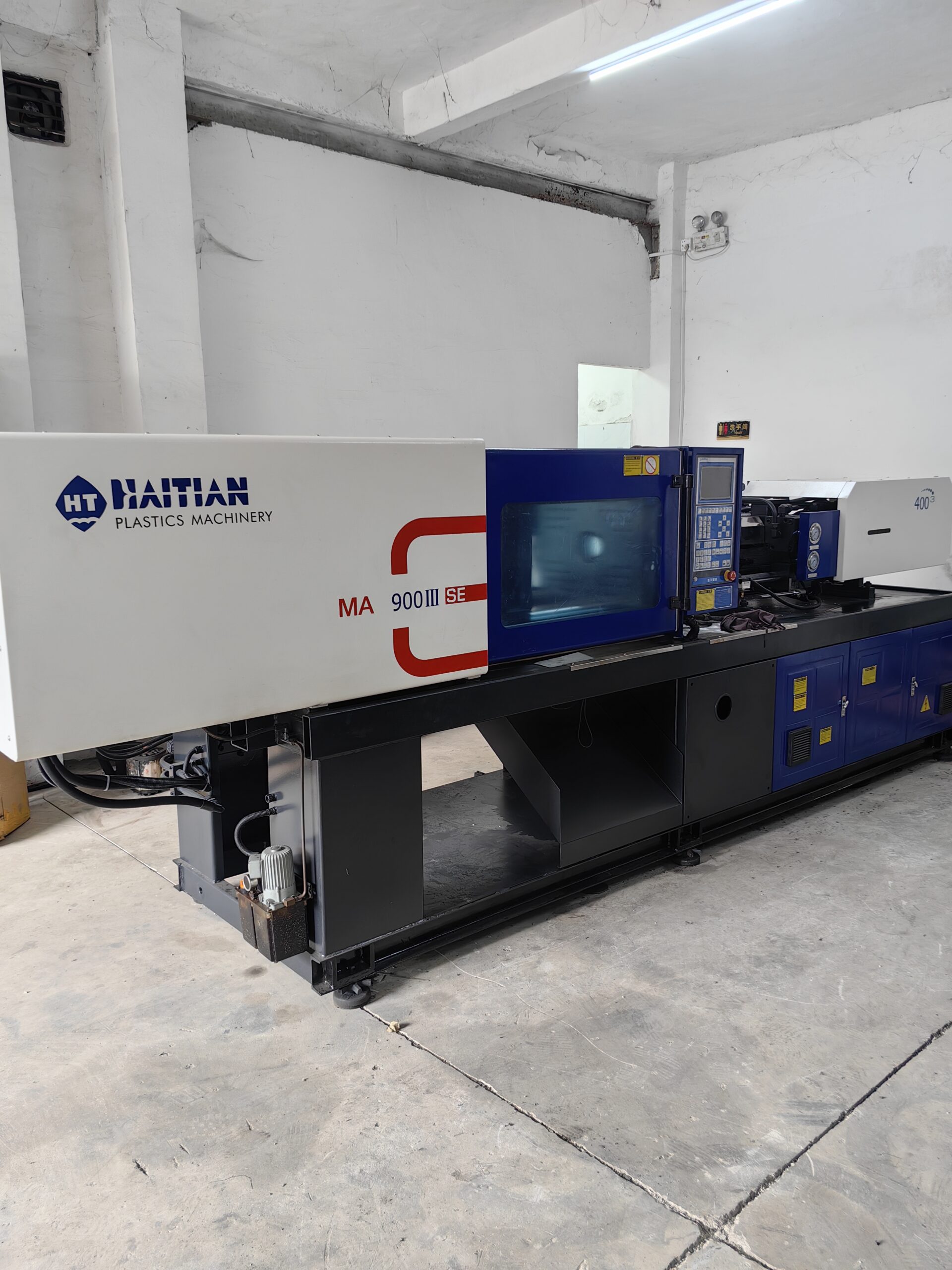

Haitian 90-ton injection molding machine display

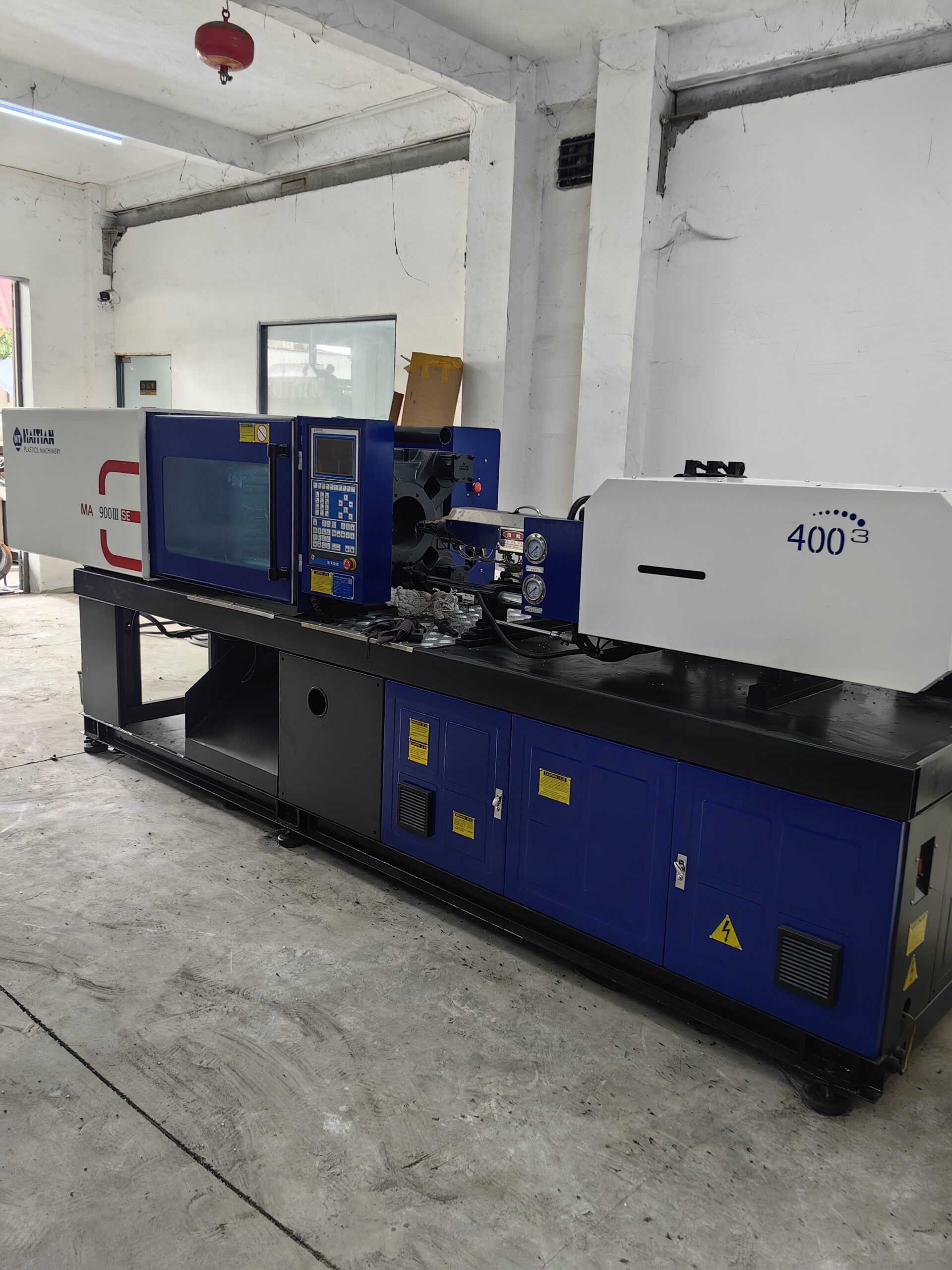

Haitian 90-ton injection molding machine for sale

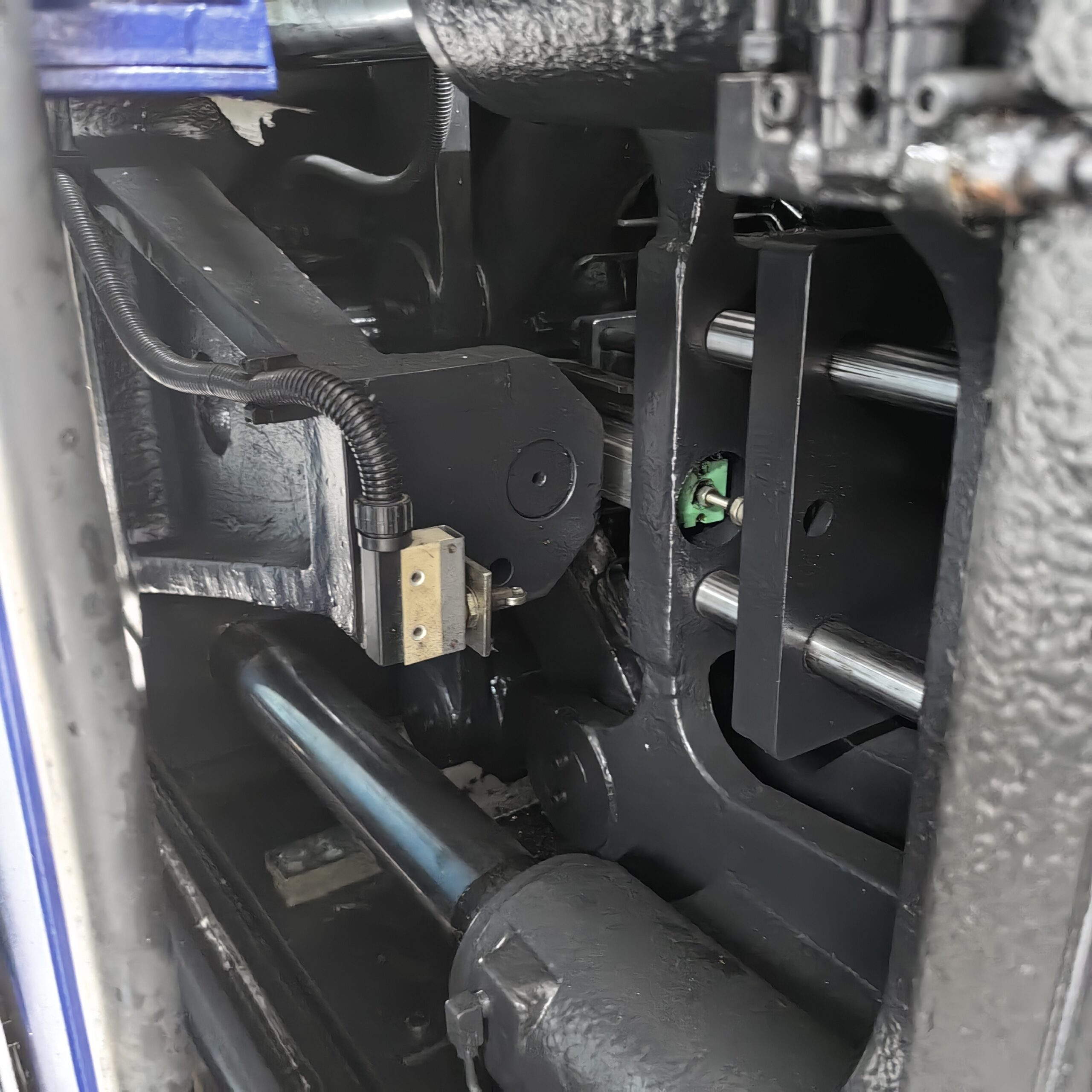

Haitian 90-ton injection molding machine details

second-hand Haitian 90-ton injection molding machine

Technical Parameters

Category Parameter Unit A B C






Injection Unit
Screw Diameter mm 32 36 40
Screw L/D Ratio L/D 22.5 20 18
Shot Size (Theoretical) cm³ 121 153 188
Injection Weight (PS) g 110 139 171
Injection Rate g/s 77 98 121
Injection Pressure Mpa 219 173 140
Plasticizing Capacity (ps) g/s 9.9 12.4 16.8
Screw Speed rpm 0 – 230





Clamping Unit
Clamp Tonnage KN 860
Toggle Stroke mm 310
Space Between Tie Bars mm 360X360
Max.Mold Height mm 360
Min. Mold Height mm 150
Ejector Stroke mm 100
Ejector Tonnage KN 33





Others
Max. Pump Pressure Mpa 16
Pump Motor Power Kw 11
Heater Power Kw 6.2
Machine Dimension (L×W×H) m 4.35×1.13×1.9
Machine Weight t 3
Hopper Capacity Kg 25
Oil Tank Capacity L 170
