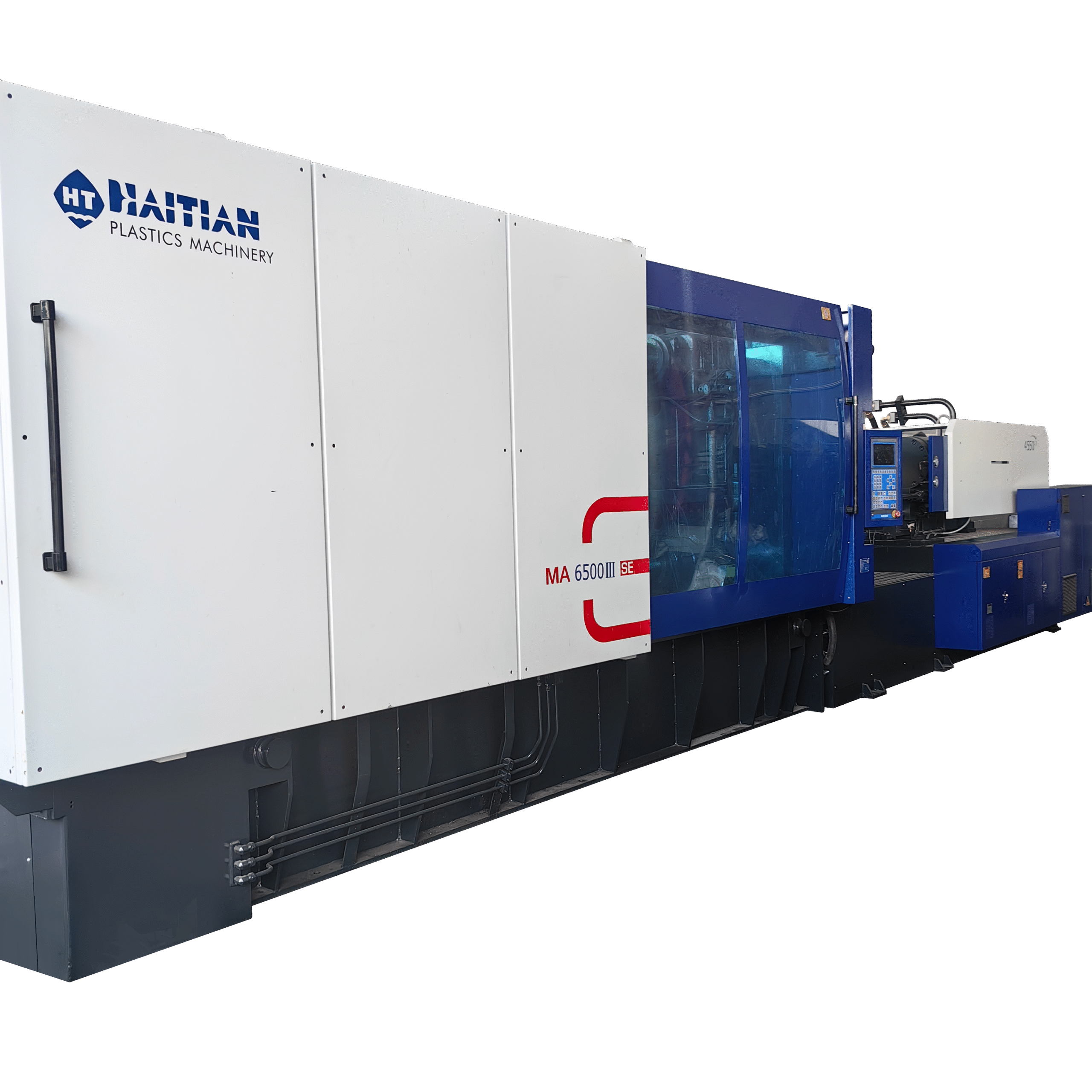

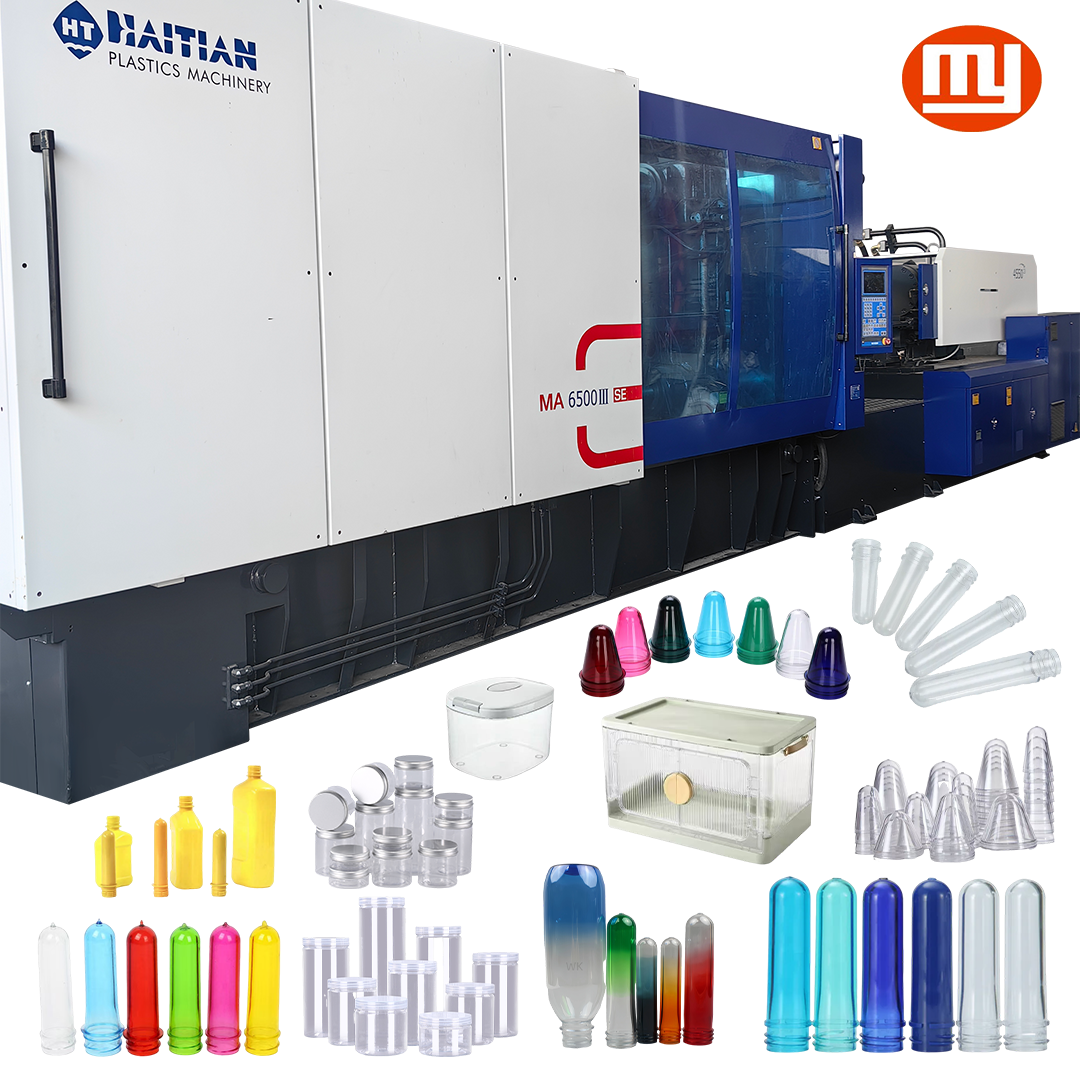

Haitian 650-ton Injection Molding Machine (PET specialized barrel screw)

Screw Diameter:80mm、90mm、100mm、110mm
Injection Weight (PS):1853g、2344g、2895g、3503g
Clamp Tonnage:6500KN
Space Between Tie Bars:895X895mm
Max.Mold Height:900mm
Machine Dimension(L×W×H):9.9X2.32X2.7m
Machine Weight:30.2t

Share:

Product Selling points

  • Energy Efficiency: The advanced servo motor system provides power on demand, reducing energy consumption by 20%-80%, with low noise levels. This significantly lowers operational costs, making it an eco-friendly and cost-effective solution for large-scale production.

  • Precision Control: Equipped with a fully closed-loop control system, including a rotary encoder and pressure sensor, this machine ensures high repeat accuracy and stability, leading to a higher product qualification rate and consistent quality.

  • Stability & Durability: Designed with high rigidity, the machine’s core components—such as the servo motor and hydraulic system—are rigorously tested for reliable performance and long-lasting durability, ensuring optimal production efficiency.

  • User-Friendly Interface: Featuring a large-screen computer that supports multiple languages, this machine offers simple and clear operation, making it easy to use for diverse production needs.

Machine Details



Technical Parameters

CategoryParameterABCD







Injection Unit

Screw Diameter8090100110
Screw L/D Ratio24.82219.818
Shot Size (Theoretical)2036257631813849
Injection Weight (PS)1853234428953503
Injection Rate490620765927
Injection Pressure224177143118
Plasticizing Capacity (ps)60.180.1107.0136.7
Screw Speed–0 – 140––







Clamping Unit

Clamp Tonnage–6500––
Toggle Stroke–900––
Space Between Tie Bars–895X895––
Max.Mold Height–900––
Min. Mold Height–400––
Ejector Stroke–260––
Ejector Tonnage–175––







Others

Max. Pump Pressure–16––
Pump Motor Power–22+45––
Heater Power–49.25––
Machine Dimension (L×W×H)–9.9×2.32×2.7––
Machine Weight–30.2––
Hopper Capacity–200––
Oil Tank Capacity–1295––
