Haitian 650-Ton Injection Molding Machine

Screw Diameter: 80mm、90mm、100mm、110mm
Injection Weight (PS): 1853g、2344g、2895g、3503g
Clamp Tonnage: 6500KN
Space Between Tie Bars: 895X895mm
Max.Mold Height: 900mm
Machine Dimension(L×W×H): 9.9X2.32X2.7m
Machine Weight: 30.2t

Share:

Product Selling points

High-Efficiency Servo Power System

The Haitian 650-ton injection molding machine uses an advanced servo motor system. It supplies power only when needed. This reduces energy use by 20%-80%. The system lowers noise and improves working conditions. Manufacturers cut operational costs while maintaining stable productivity. This energy-saving design supports large-scale production goals.


Precision Control for Consistent Quality

The machine uses a full closed-loop control system. A rotary encoder and pressure sensor ensure precise feedback. This improves repeat accuracy and stabilizes each injection cycle. Factories gain higher qualification rates and uniform product quality. The precision system supports industries requiring tight tolerances.


Stable and Durable Industrial Structure

The machine features a high-rigidity frame for long service life. The servo motor and hydraulic components undergo strict testing. This ensures stable operation under heavy loads. The durable structure reduces maintenance needs and improves uptime. Teams rely on it for continuous production in demanding environments.


User-Friendly Operation Interface

The machine includes a large-screen control computer. It supports multiple languages for global use. Operators navigate features quickly with clear menus. This simplifies daily operation and reduces training time. The interface adapts easily to diverse production requirements.

Machine Details

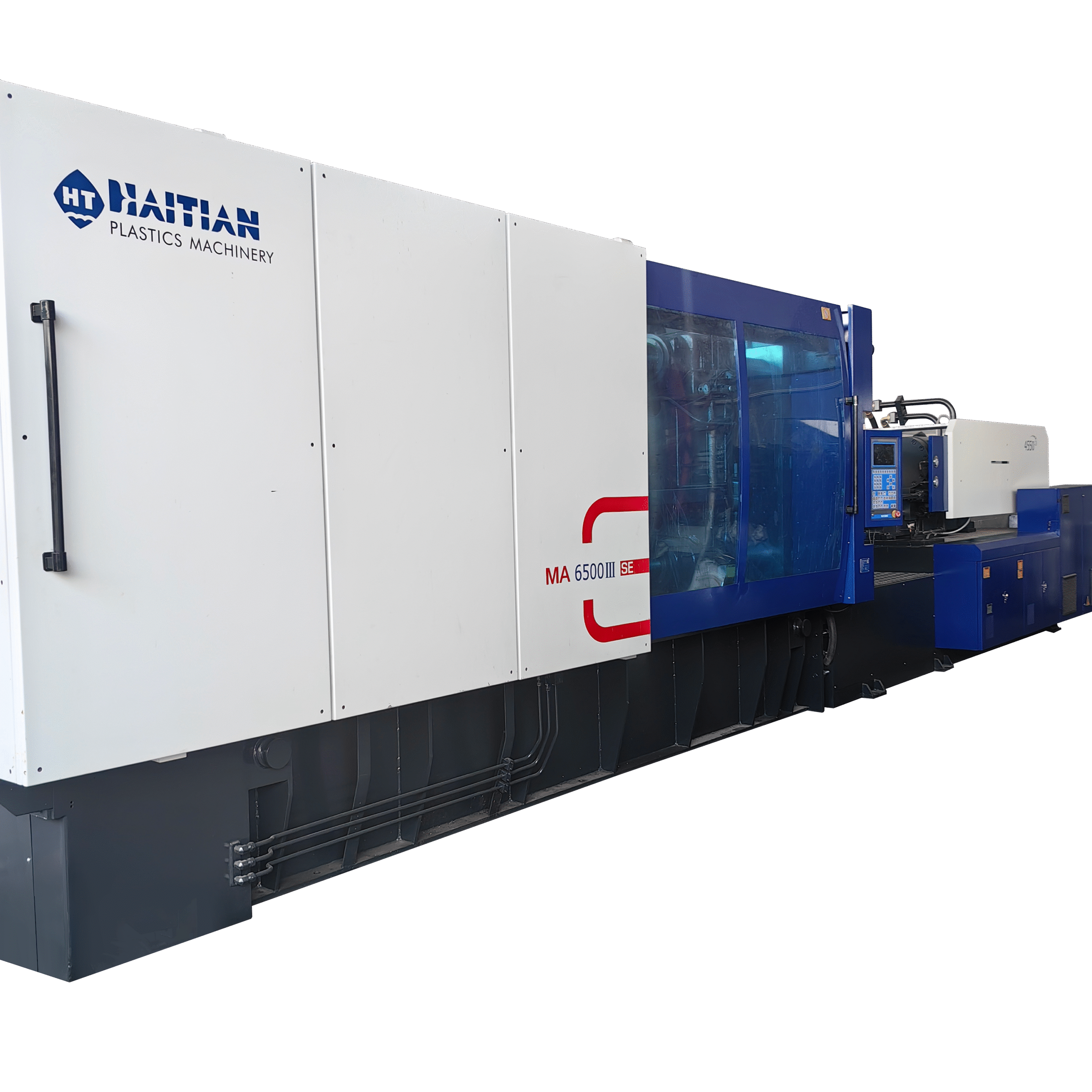

Haitian 650-ton injection molding machine display

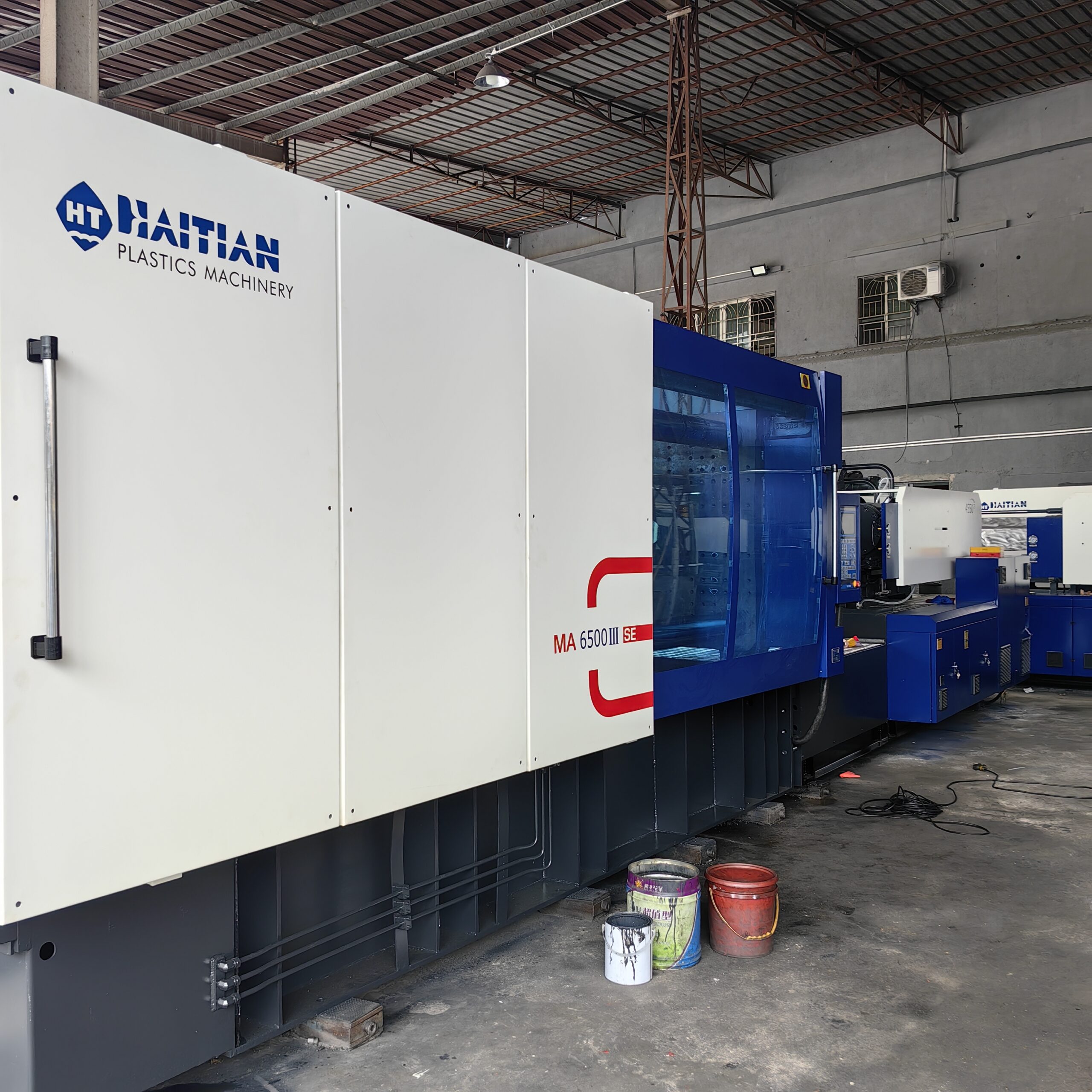

Haitian 650-ton injection molding machine factory

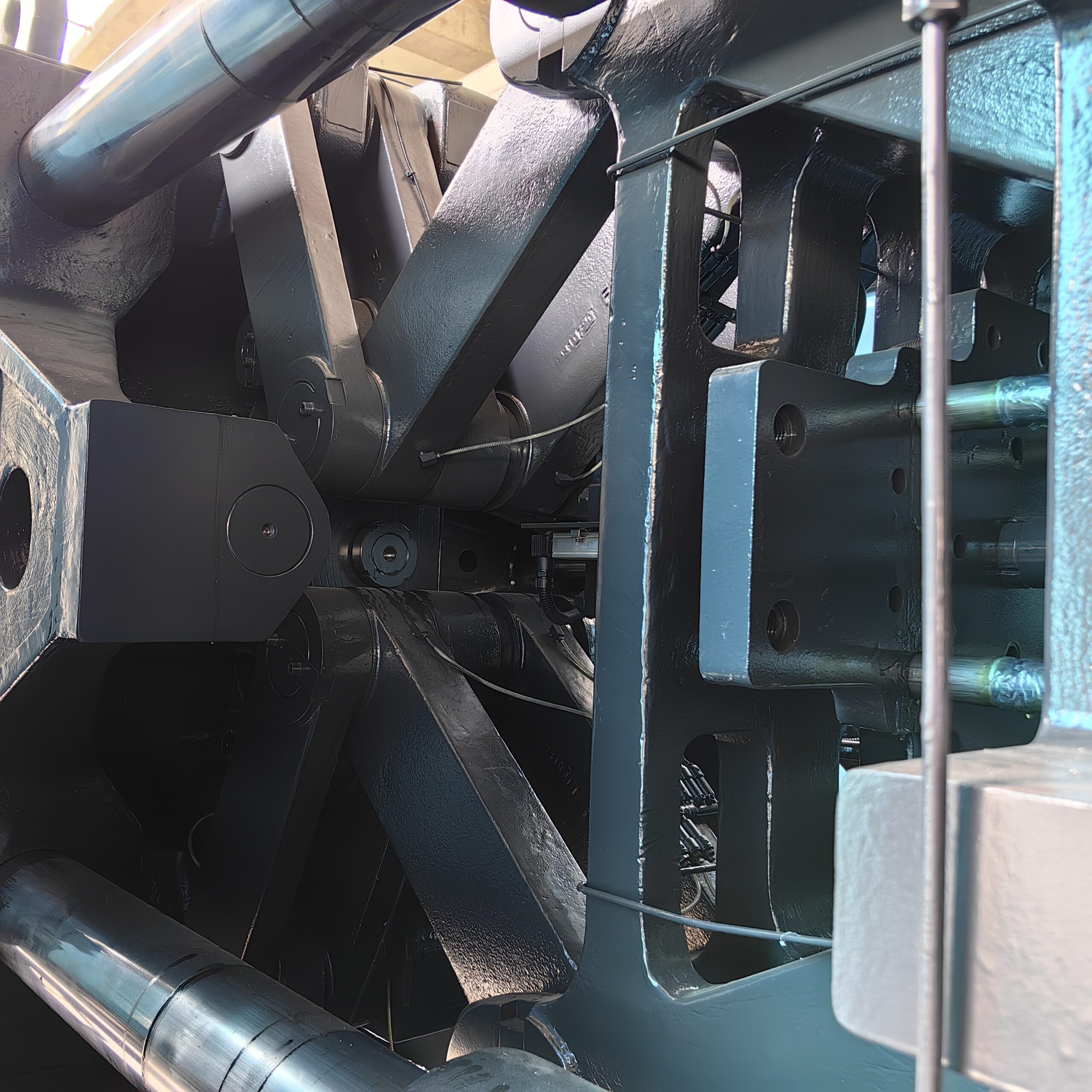

Haitian 650-ton injection molding machine detail

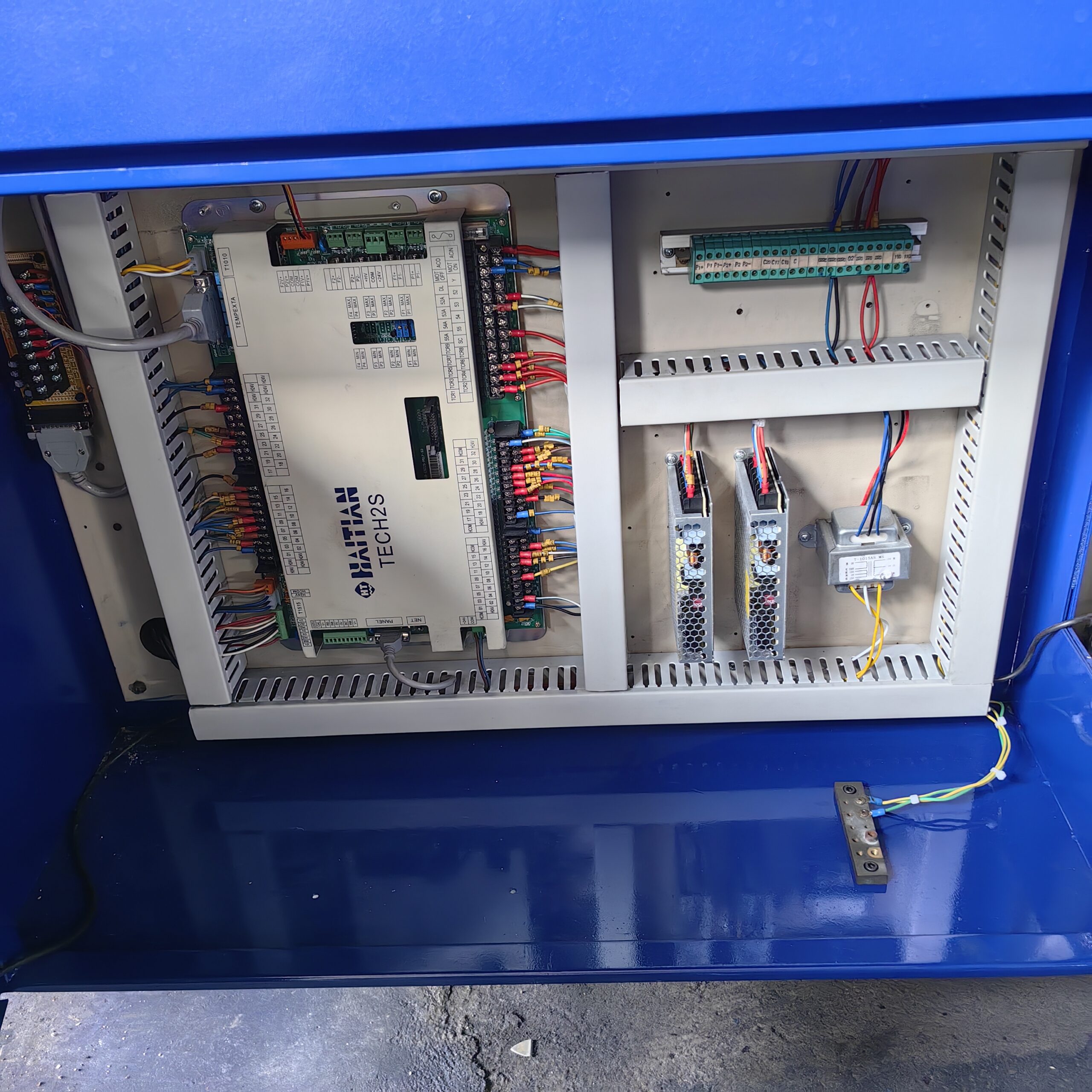

used Haitian 650-ton injection molding machine

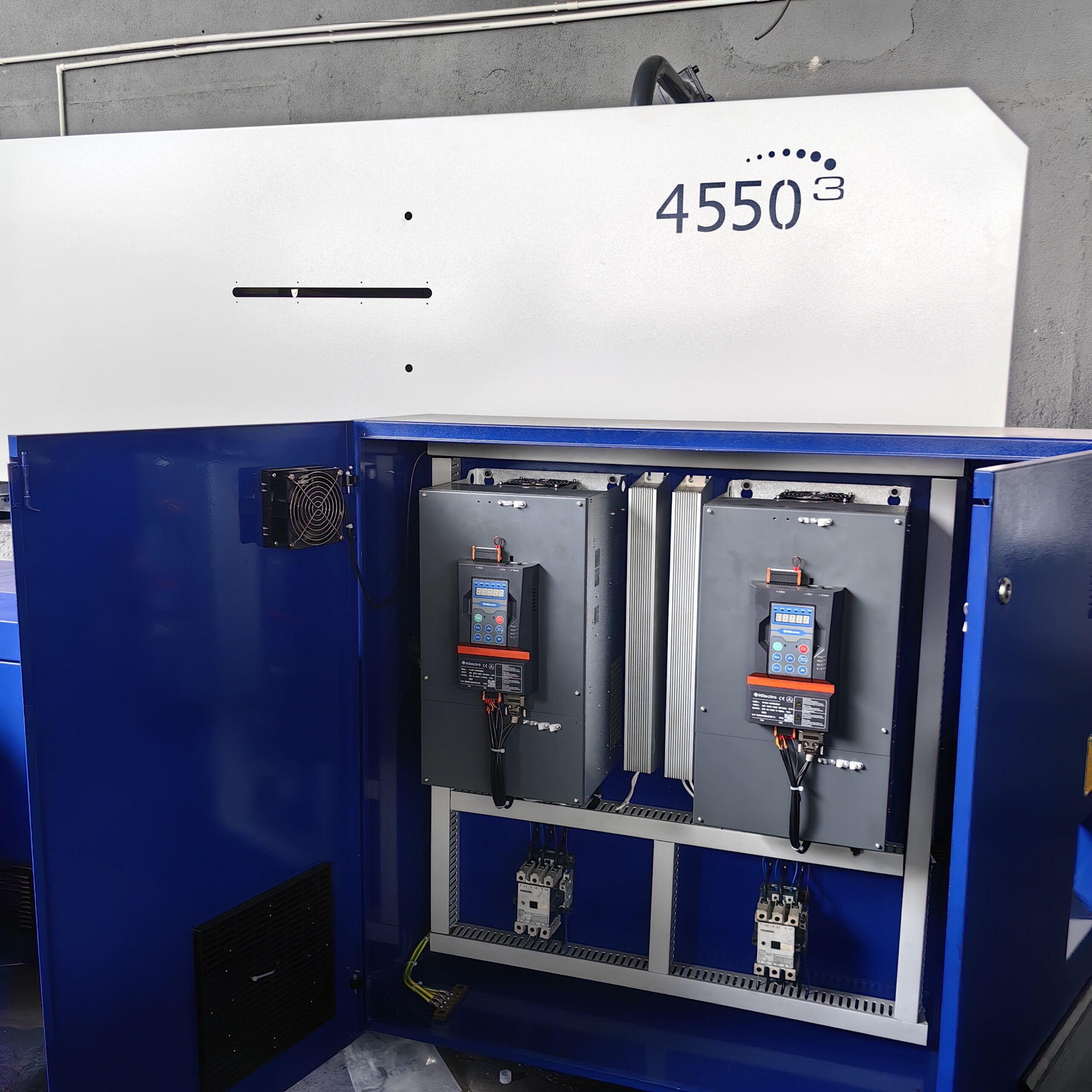

Haitian 650-ton injection molding machine details

Technical Parameters

CategoryParameterABCD







Injection Unit

Screw Diameter8090100110
Screw L/D Ratio24.82219.818
Shot Size (Theoretical)2036257631813849
Injection Weight (PS)1853234428953503
Injection Rate490620765927
Injection Pressure224177143118
Plasticizing Capacity (ps)60.180.1107.0136.7
Screw Speed–0 – 140––







Clamping Unit

Clamp Tonnage–6500––
Toggle Stroke–900––
Space Between Tie Bars–895X895––
Max.Mold Height–900––
Min. Mold Height–400––
Ejector Stroke–260––
Ejector Tonnage–175––







Others

Max. Pump Pressure–16––
Pump Motor Power–22+45––
Heater Power–49.25––
Machine Dimension (L×W×H)–9.9×2.32×2.7––
Machine Weight–30.2––
Hopper Capacity–200––
Oil Tank Capacity–1295––
