Haitian 200-ton Servo Used Injection Molding Machine (PET specialized barrel screw)

Screw Diameter: 45mm, 50mm, 55mm
Injection Weight (PS): 333g, 411g, 497g
Clamp Tonnage: 2000KN
Space Between Tie Bars: 510X510mm
Max.Mold Height: 510mm
Machine Dimension(L×W×H): 5.3X1.35X2.1m
Machine Weight: 6.3t

Share:

Product Selling points

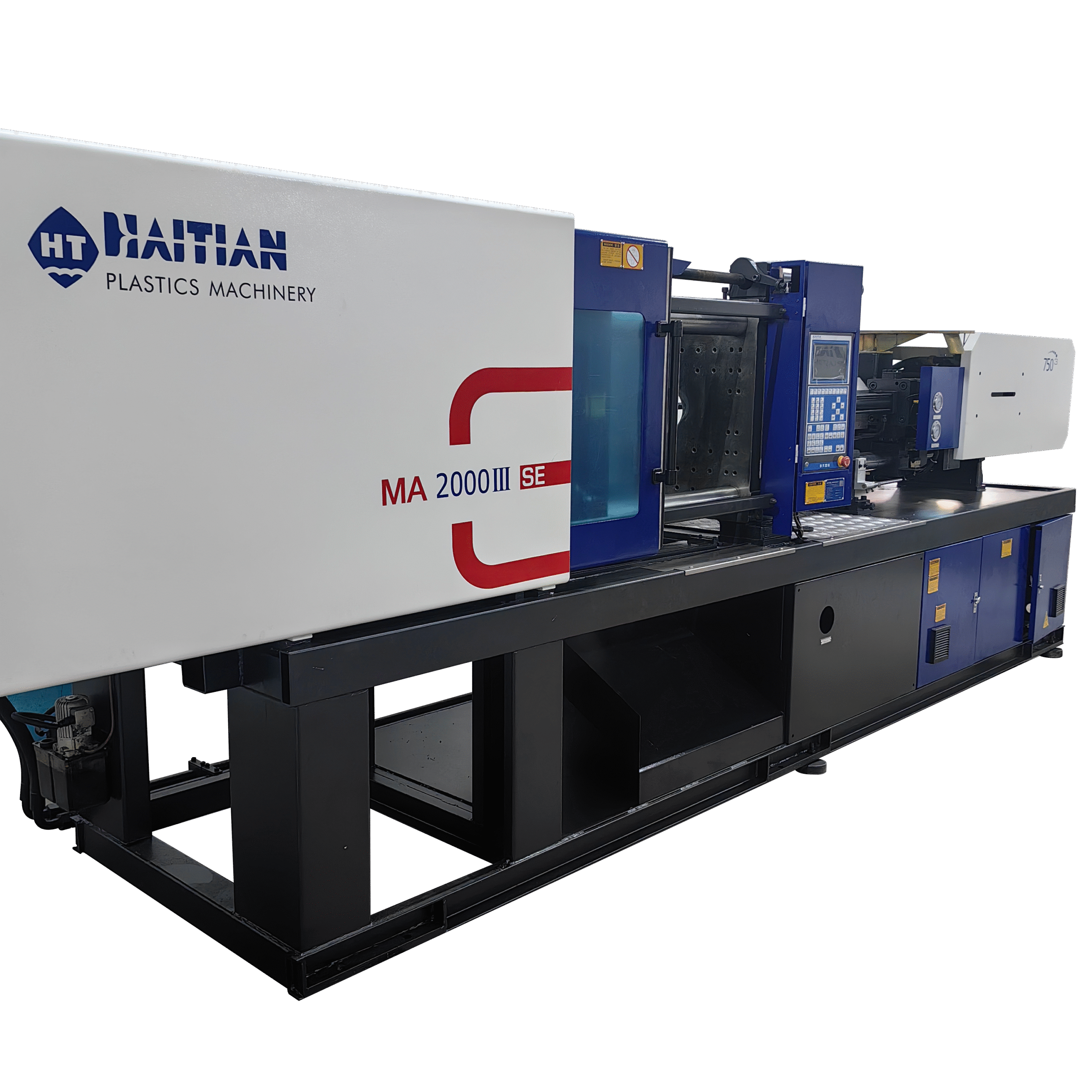

Haitian 200-Ton Servo Used Injection Molding Machine

The Haitian 200-ton servo used injection molding machine (Model: MA2000/750) is a reliable and cost-efficient solution for manufacturers seeking high precision and stable performance in medium-to-large plastic production. Equipped with a PET-specialized barrel and screw, this machine is well-suited for applications requiring consistent material flow and dimensional accuracy.

High-Efficiency Servo Drive System

Powered by an advanced servo motor system, this machine delivers 20–80% energy savings compared to conventional hydraulic injection molding machines. The servo technology ensures precise control, faster response, and reduced operational noise, making it ideal for continuous industrial production.

Fully Refurbished & Professionally Inspected

Each Haitian MA2000/750 unit undergoes a comprehensive refurbishment process, including mechanical inspection, electrical system testing, and performance calibration. Core components operate at over 98% efficiency, ensuring dependable long-term operation. On-site testing is available to verify machine condition before delivery.

Designed for Heavy-Duty Industrial Applications

With a clamping force of 200 tons, this machine is widely used in:

  • Automotive plastic components

  • Large household appliance parts

  • Logistics pallets and containers

  • Industrial PET-based plastic products

Cost-Effective Alternative to New Equipment

This Haitian 200-ton servo used injection molding machine offers the performance of new equipment at a significantly lower investment cost, helping manufacturers expand capacity while controlling capital expenditure.

Machine Details











Technical Parameters

CategoryParameterABC







Injection Unit

Screw Diameter455055
Screw L/D Ratio22.22018.2
Shot Size (Theoretical)366452546
Injection Weight (PS)333411497
Injection Rate141174210
Injection Pressure210170141
Plasticizing Capacity (ps)18.324.531.8
Screw Speed0 – 175







Clamping Unit

Clamp Tonnage2000
Toggle Stroke470
Space Between Tie Bars510X510
Max.Mold Height510
Min. Mold Height200
Ejector Stroke130
Ejector Tonnage62







Others

Max. Pump Pressure16
Pump Motor Power18.5
Heater Power14.25
Machine Dimension (L×W×H)5.3×1.35×2.1
Machine Weight6.3
Hopper Capacity50
Oil Tank Capacity300
