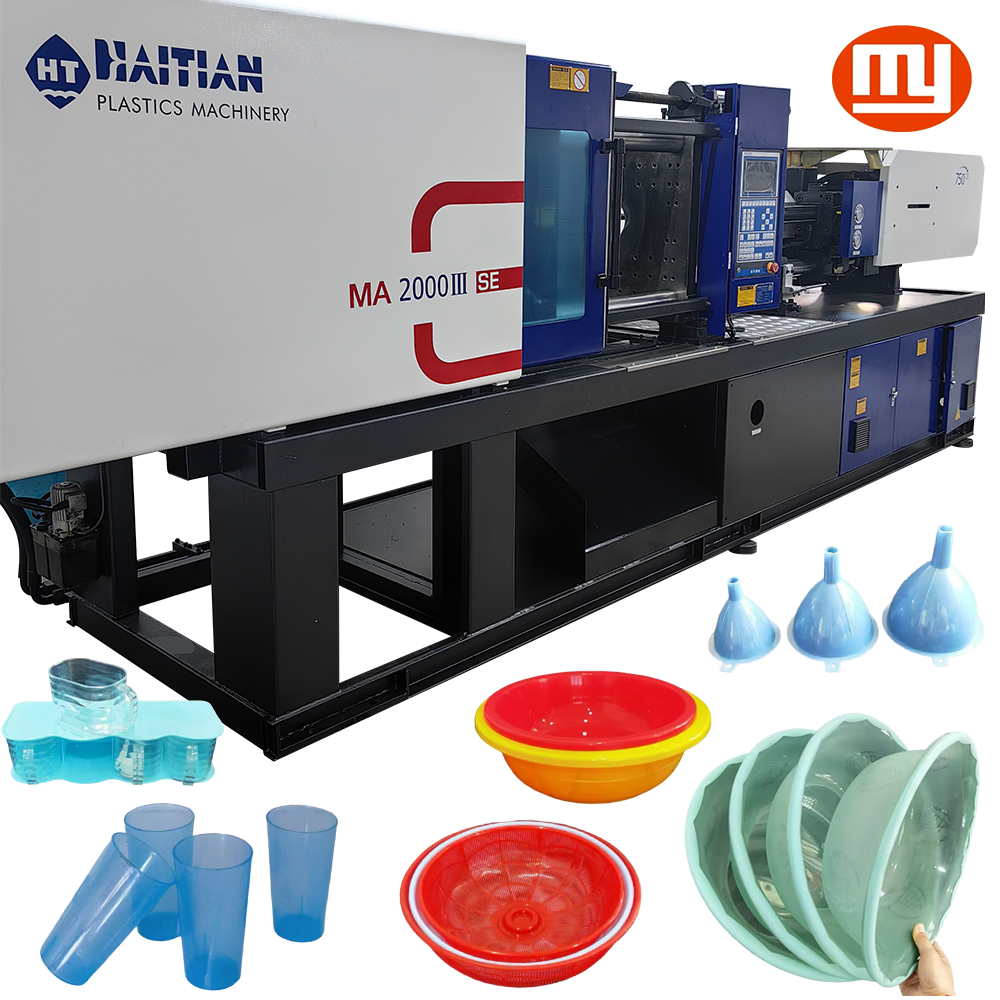

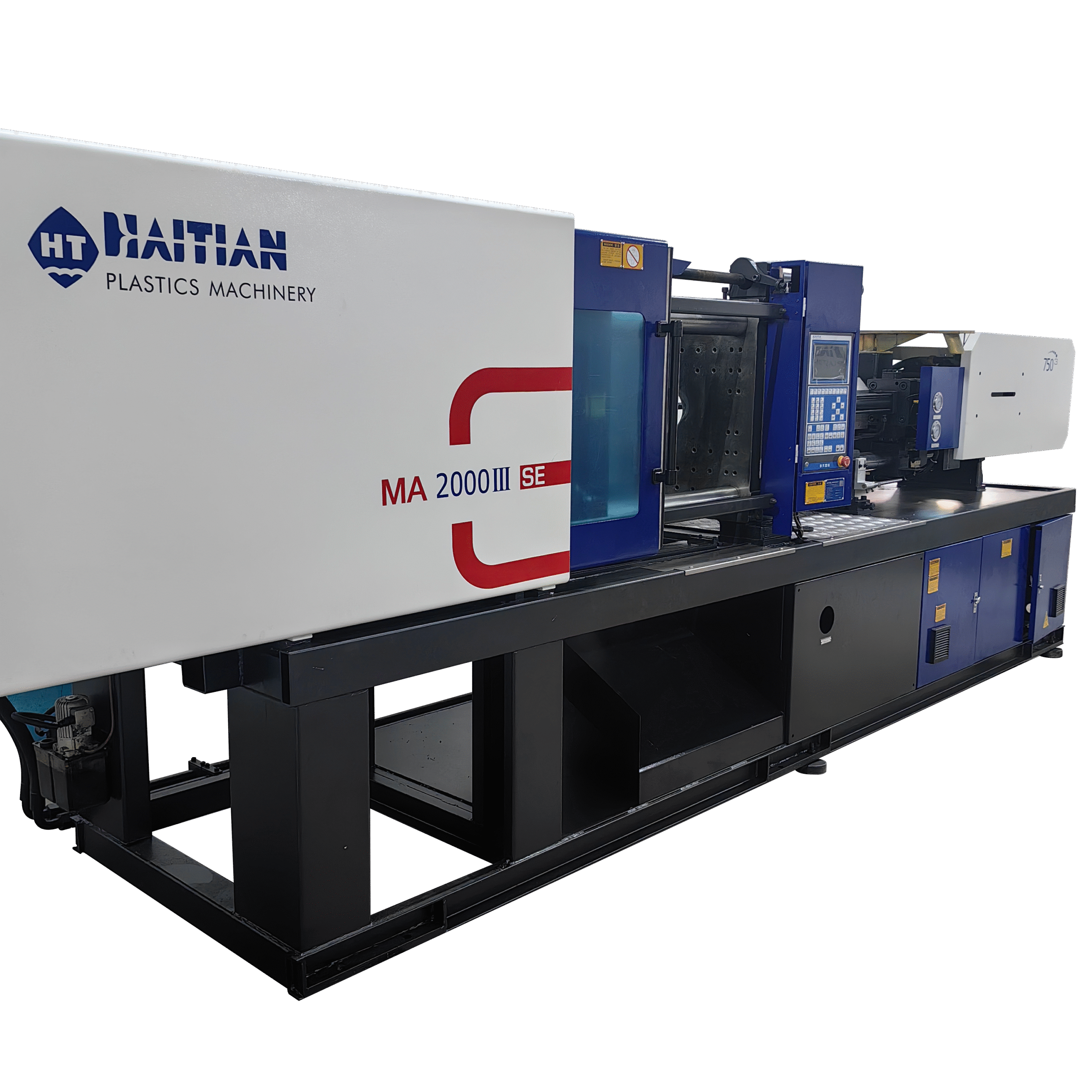

Haitian 200-ton Injection Molding Machine

Screw Diameter:45mm、50mm、55mm
Injection Weight (PS):333g、411g、497g
Clamp Tonnage:2000KN
Space Between Tie Bars:510X510mm
Max.Mold Height:510mm
Machine Dimension(L×W×H):5.3X1.35X2.1m
Machine Weight:6.3t

Share:

Product Selling points

The Haitian 200-ton injection molding machine provides precise molding for large plastic components. It suits automotive panels, appliances, and industrial containers. Factories maintain consistent quality even under high-volume production. The machine ensures stable and accurate results for demanding applications.


Energy-Efficient Servo Motor System

The MA2000/750 uses a modern servo motor for energy savings. Teams reduce operating costs by 20%-80% compared to hydraulic machines. The system maintains high-speed injection and stable pressure simultaneously. Manufacturers gain eco-friendly production without sacrificing performance.


Fully Refurbished and Inspected

The machine undergoes professional refurbishment and component testing. Core parts operate at over 98% efficiency. On-site inspection and testing are available for buyers. This ensures reliability, minimizes downtime, and builds confidence for industrial deployment.


Reliable and Cost-Effective Production

This second-hand Haitian 200-ton injection molding machine delivers consistent output with minimal maintenance. Companies benefit from high-performance, low-cost operations. Its durability suits both new production lines and expanded manufacturing facilities.


Ideal for Diverse Industrial Applications

The machine handles automotive, large appliance, pallet, and container production. It performs efficiently in high-volume and precision-demanding environments. Factories gain a robust, reliable, and energy-saving solution for multiple manufacturing needs.

Machine Details







Technical Parameters

CategoryParameterABC







Injection Unit

Screw Diameter455055
Screw L/D Ratio22.22018.2
Shot Size (Theoretical)366452546
Injection Weight (PS)333411497
Injection Rate141174210
Injection Pressure210170141
Plasticizing Capacity (ps)18.324.531.8
Screw Speed0 – 175







Clamping Unit

Clamp Tonnage2000
Toggle Stroke470
Space Between Tie Bars510X510
Max.Mold Height510
Min. Mold Height200
Ejector Stroke130
Ejector Tonnage62







Others

Max. Pump Pressure16
Pump Motor Power18.5
Heater Power14.25
Machine Dimension (L×W×H)5.3×1.35×2.1
Machine Weight6.3
Hopper Capacity50
Oil Tank Capacity300
