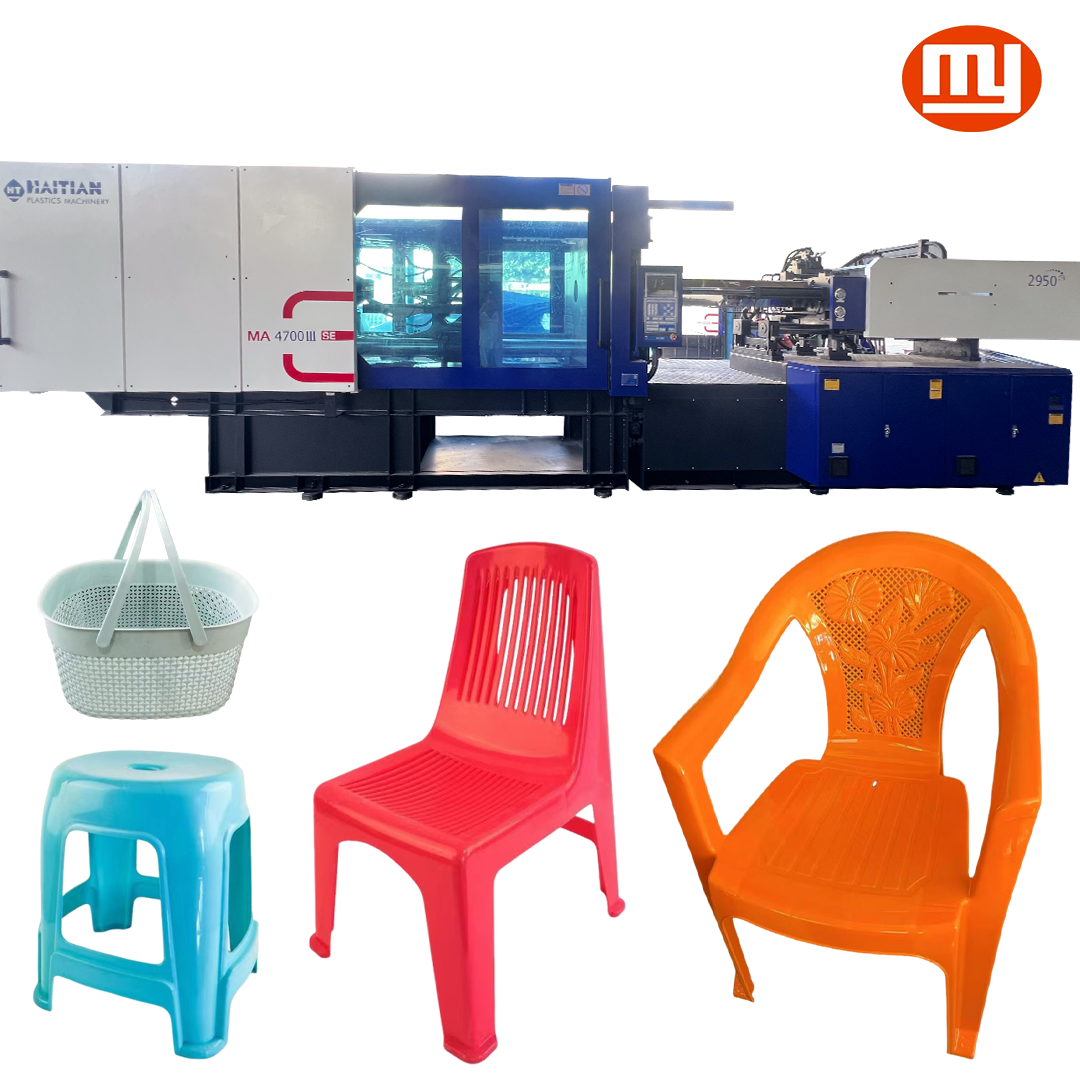

Haitian 470-ton Injection Molding Machine

Screw Diameter: 70mm, 80mm, 90mm
Injection Weight (PS): 1296g, 1693g, 2143g
Clamp Tonnage: 4500KN
Space Between Tie Bars: 780X780mm
Max.Mold Height: 780mm
Machine Dimension(L×W×H): 7.95X2.05X2.7m
Machine Weight: 18.8t

Share:

Product Selling points

High-Performance Haitian 470-T Injection Molding Machine

The Haitian 470-t injection molding machine (MA4700III) is a heavy-duty, high-precision solution designed for large-scale plastic production. With a powerful clamping force of 4700 kN, this machine delivers consistent performance for demanding industrial applications requiring strength, accuracy, and stability.

Reliable Servo Drive for Energy Efficiency

Equipped with an advanced servo drive system, the MA4700III achieves significant energy savings—typically 20% to 80% compared with conventional hydraulic injection molding machines. The servo system adjusts power output in real time, reducing unnecessary energy consumption while maintaining precise control throughout the molding cycle.

Low Noise and Stable Operation

This Haitian 470-t injection molding machine operates with reduced noise levels, creating a quieter and more comfortable production environment. Its optimized hydraulic and control systems ensure smooth, stable operation even during long production runs.

Ideal for Large and Precision Plastic Parts

Designed for heavy-duty molding tasks, the machine is widely used in industries such as automotive components, large home appliances, logistics pallets, industrial containers, and other large plastic products requiring reliable molding quality.

Tested Second-Hand Quality You Can Trust

All key components of this second-hand injection molding machine have been thoroughly inspected and tested to ensure reliable performance. On-site inspection and trial operation are available, providing confidence in machine condition and production readiness.

Machine Details

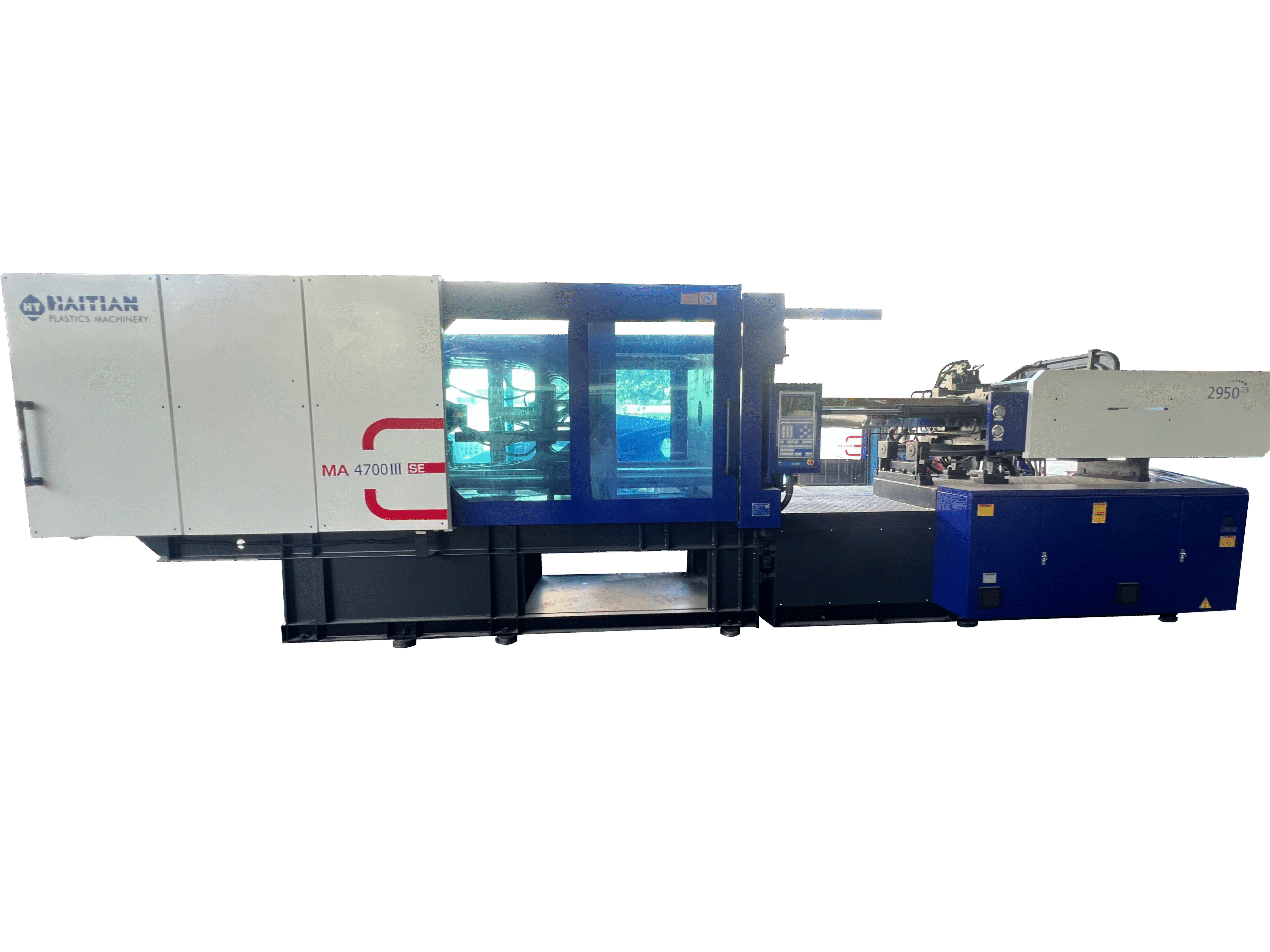

Haitian 470-t injection molding machine

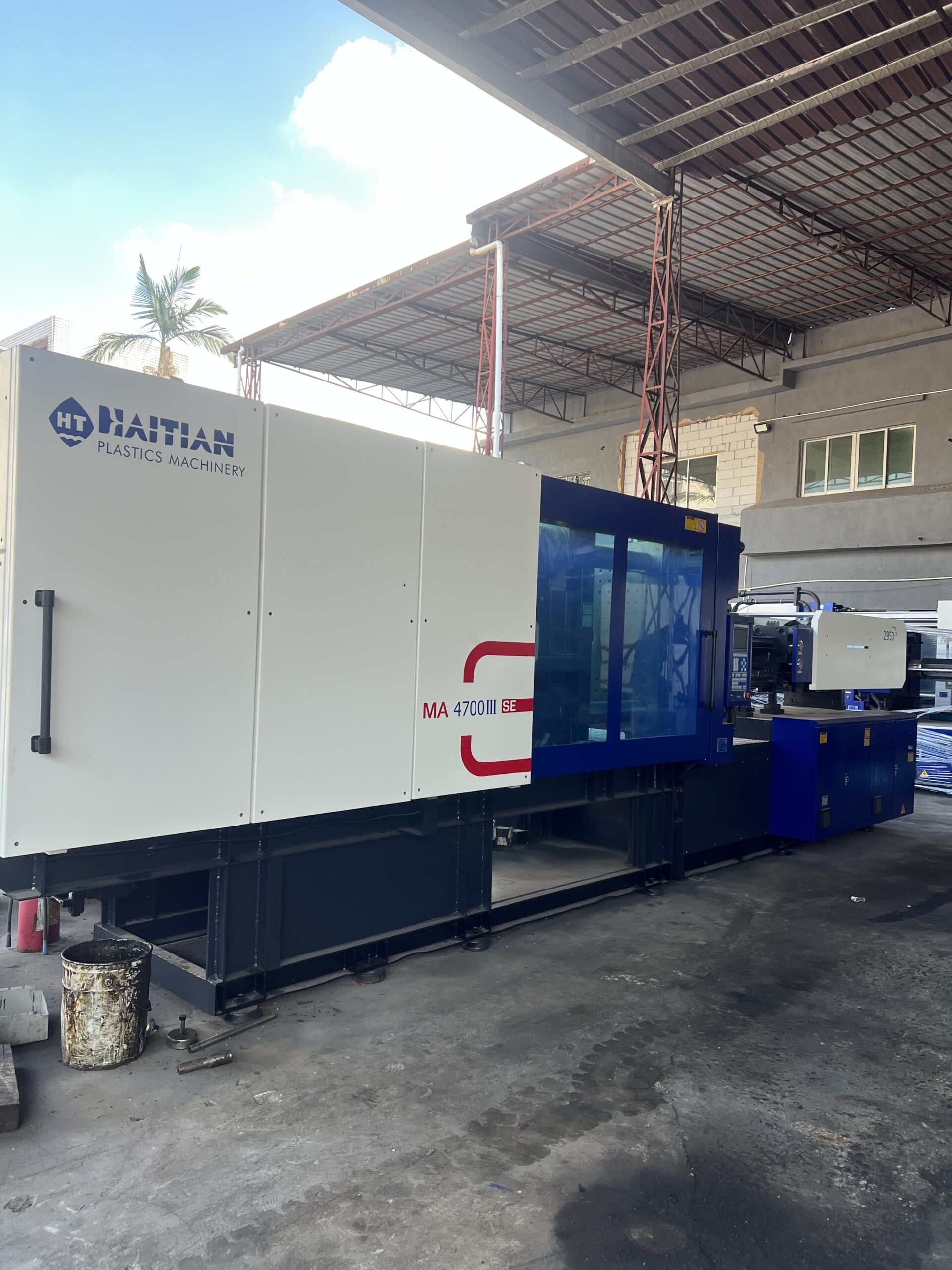

MA4700III injection molding machine

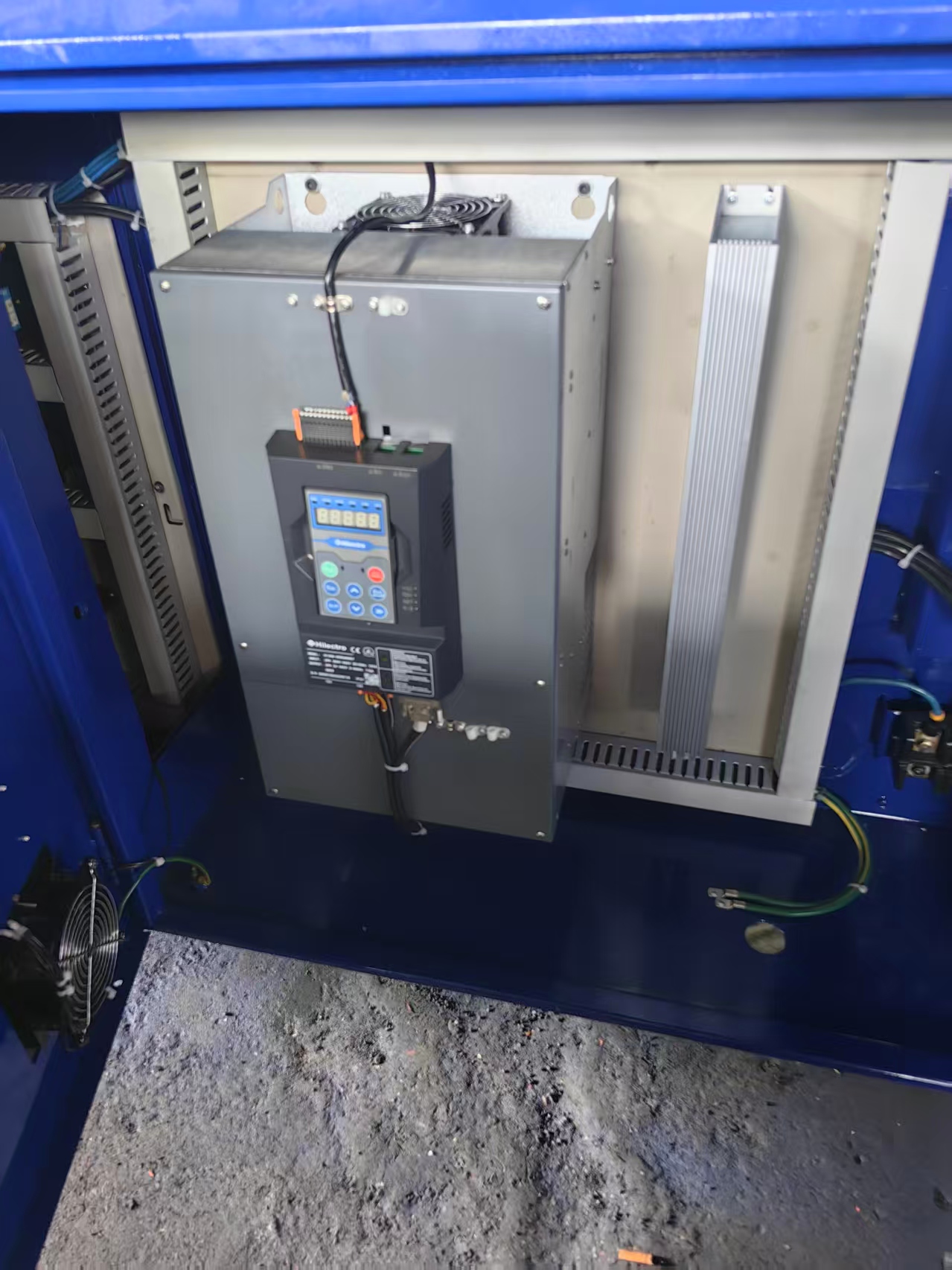

used Haitian injection machine

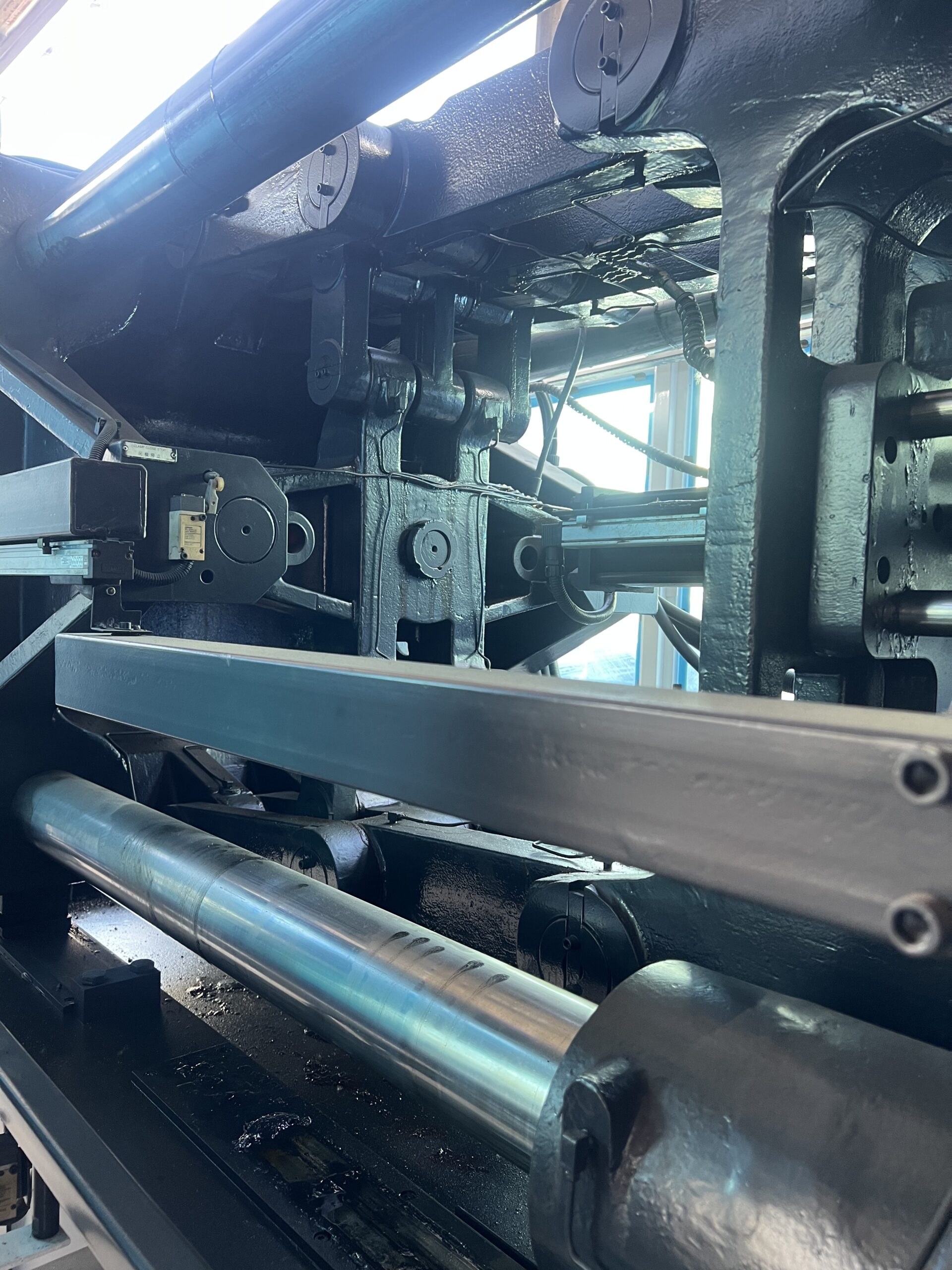

servo injection molding machine

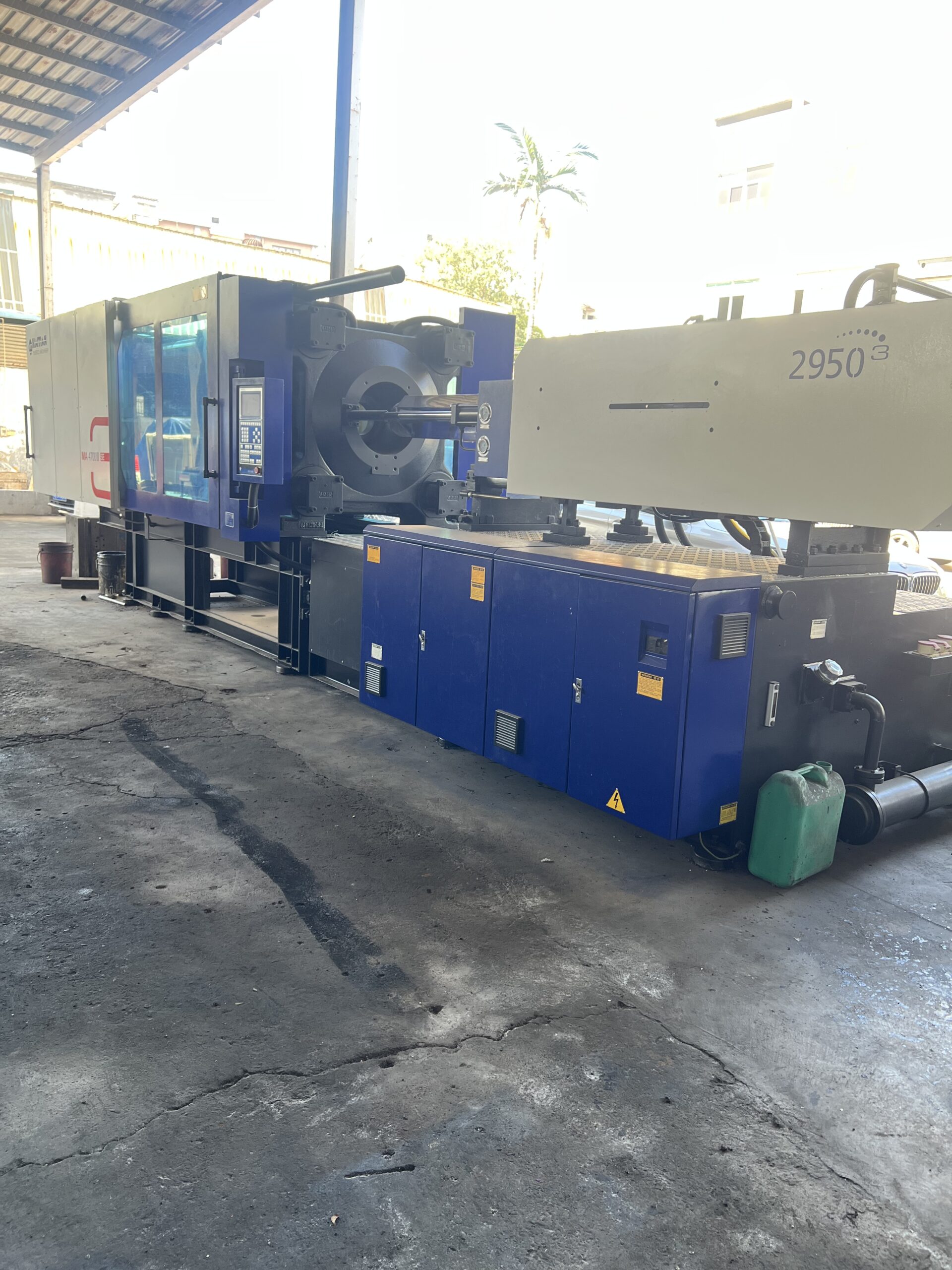

470 ton injection molding machine

Technical Parameters

CategoryParameterABC







Injection Unit

Screw Diameter708090
Screw L/D Ratio22.92017.8
Shot Size (Theoretical)142418602355
Injection Weight (PS)129616932143
Injection Rate366478604
Injection Pressure204156123
Plasticizing Capacity (ps)54.577.297.5
Screw Speed–0 – 170–







Clamping Unit

Clamp Tonnage–4500–
Toggle Stroke–740–
Space Between Tie Bars–780X780–
Max.Mold Height–780–
Min. Mold Height–330–
Ejector Stroke–200–
Ejector Tonnage–110–







Others

Max. Pump Pressure–16–
Pump Motor Power–45–
Heater Power–29.45–
Machine Dimension (L×W×H)–7.95×2.05×2.7–
Machine Weight–18.8–
Hopper Capacity–100–
Oil Tank Capacity–850–
