Second-Hand Haitian 250-Ton Servo Injection Machine

Screw Diameter: 50mm, 55mm, 60mm
Injection Weight (PS): 452g, 547g, 651g
Clamp Tonnage: 2500KN
Space Between Tie Bars: 570X570mm
Max.Mold Height: 570mm
Machine Dimension(L×W×H): 5.76X1.46X2.15m
Machine Weight: 7.7t

Share:

Product Selling points

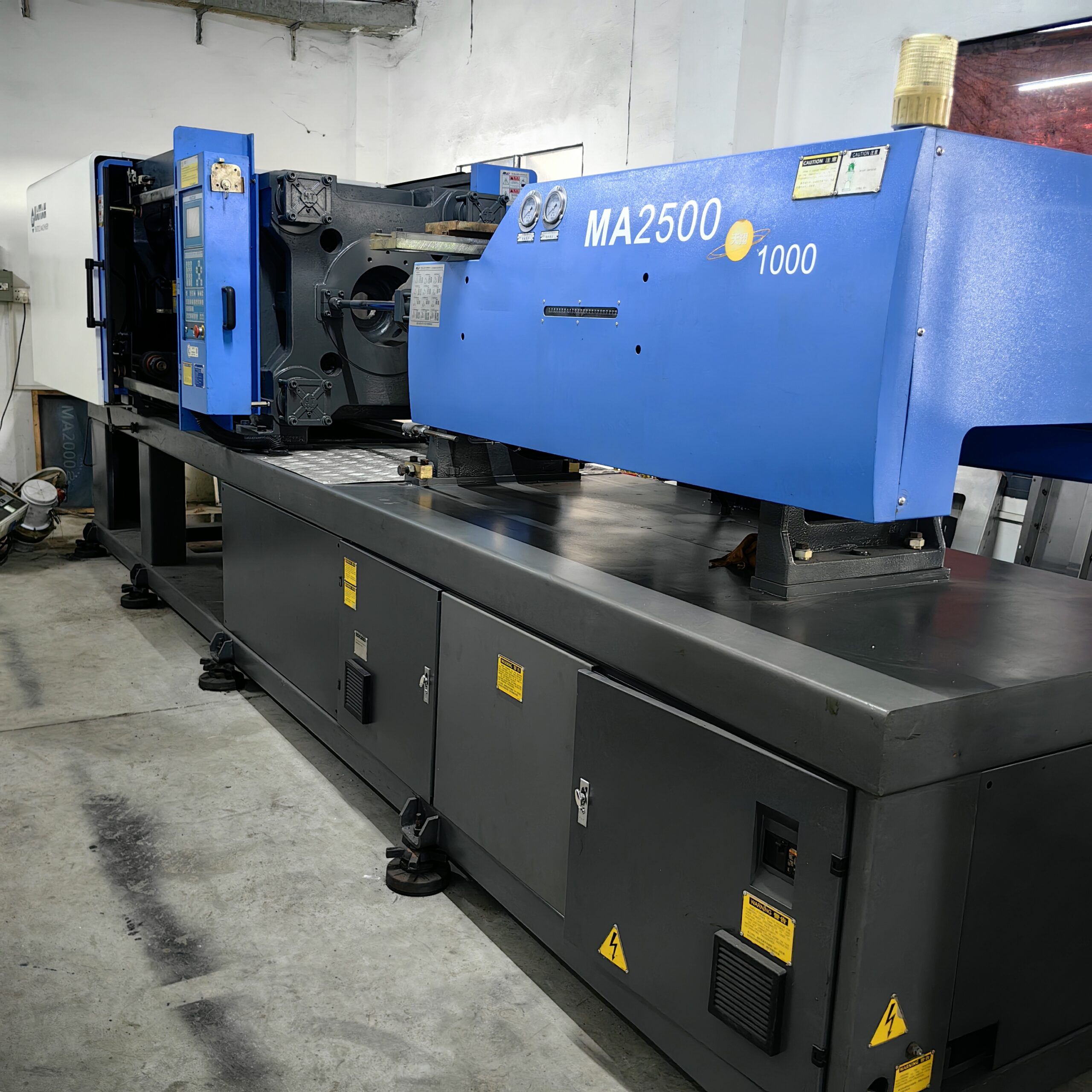

Haitian 250-Ton Servo Injection Molding Machine

The second-hand Haitian 250-ton servo injection molding machine is a proven solution for manufacturers seeking precision, stability, and energy efficiency at a competitive investment level. Common models including MA2500 and MA2500II1000 are widely recognized for their reliability in large-scale injection molding operations.

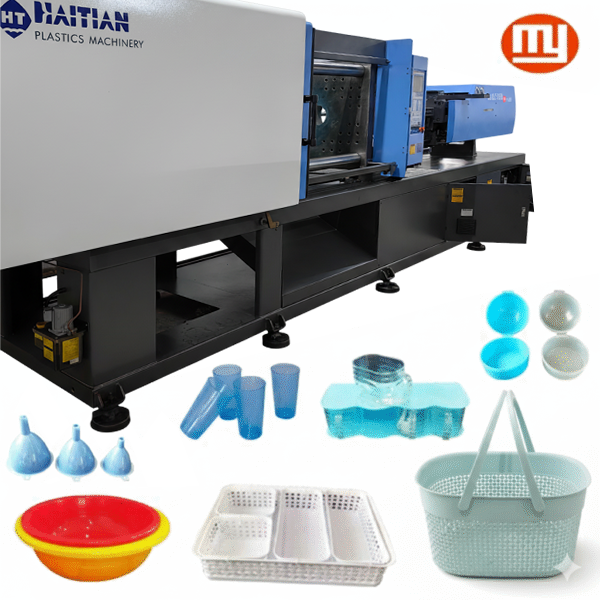

With a clamping force of 2500 kN (250 tons), this machine is suitable for producing automotive components, home appliance housings, logistics pallets, industrial containers, and other precision-molded plastic products.

Energy-Efficient Servo Drive System

Equipped with an advanced servo drive system, the Haitian 250-ton servo injection molding machine delivers energy savings of approximately 20% to 80% compared with conventional hydraulic machines. The servo system ensures precise control, faster response, and significantly reduced noise levels, supporting efficient and environmentally responsible production.

Professionally Inspected & Tested Performance

Each second-hand Haitian injection molding machine is thoroughly inspected before delivery. Core components undergo comprehensive testing to ensure over 98% operational efficiency. On-site inspection and trial operation are available, allowing buyers to verify machine condition and performance with confidence.

Stable Output for Long-Term Production

Designed for continuous industrial use, this Haitian servo injection molding machine offers consistent molding accuracy, stable clamping force, and reliable repeatability. It is an ideal choice for manufacturers looking to expand capacity while maintaining cost control.

Machine Details

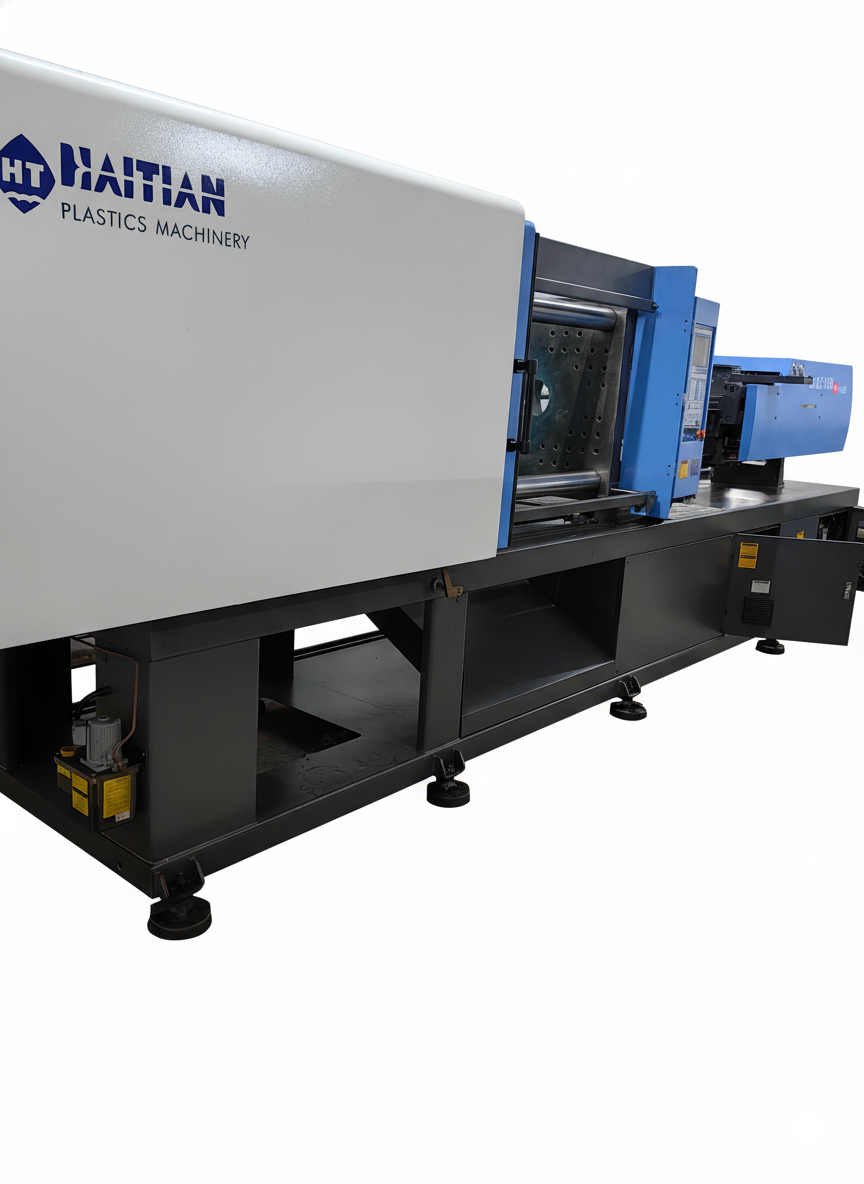

Haitian 250-ton servo injection molding machine

second-hand injection molding machine

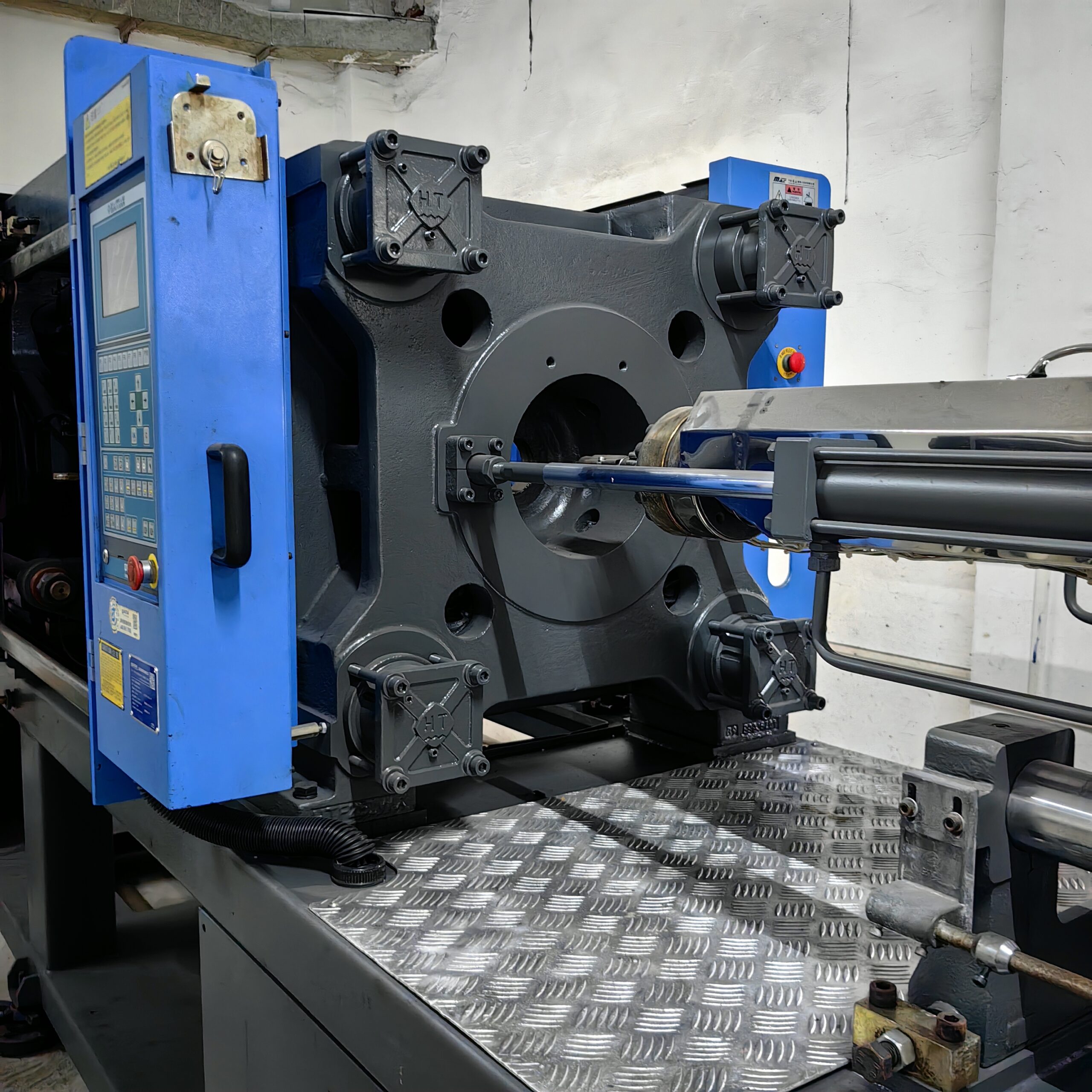

used Haitian injection machine

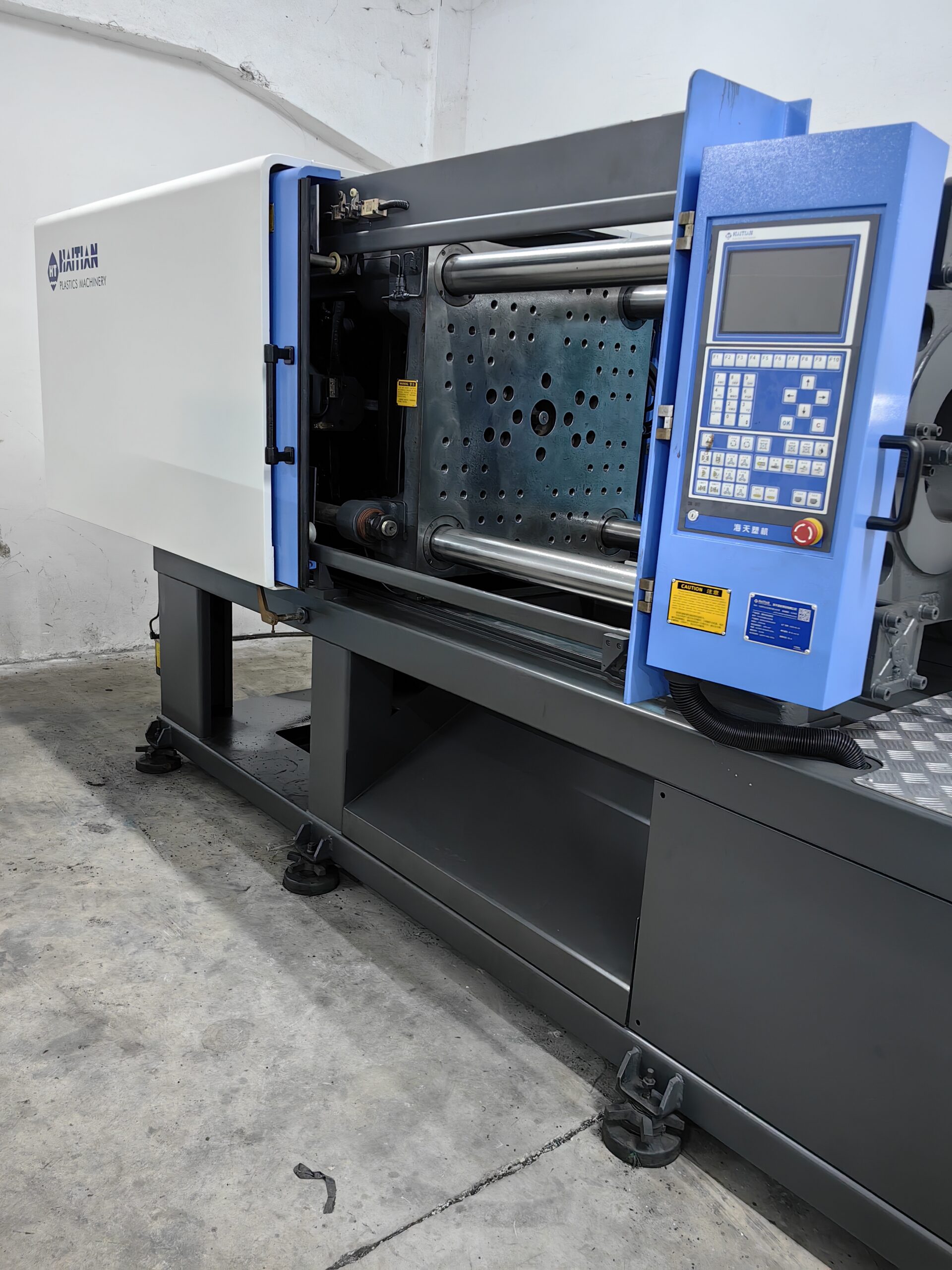

250 ton injection molding machine

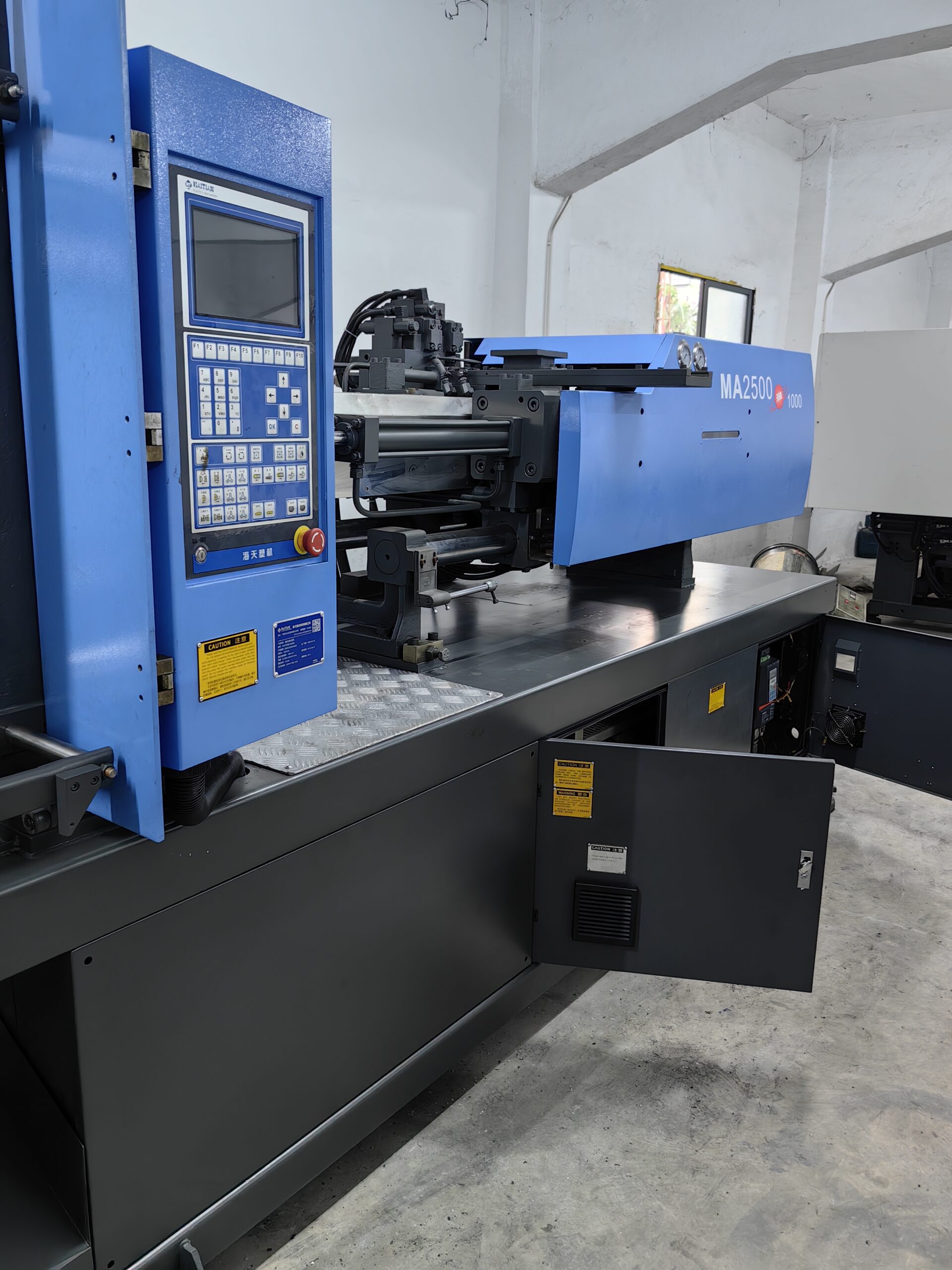

used 250 ton injection molding machine

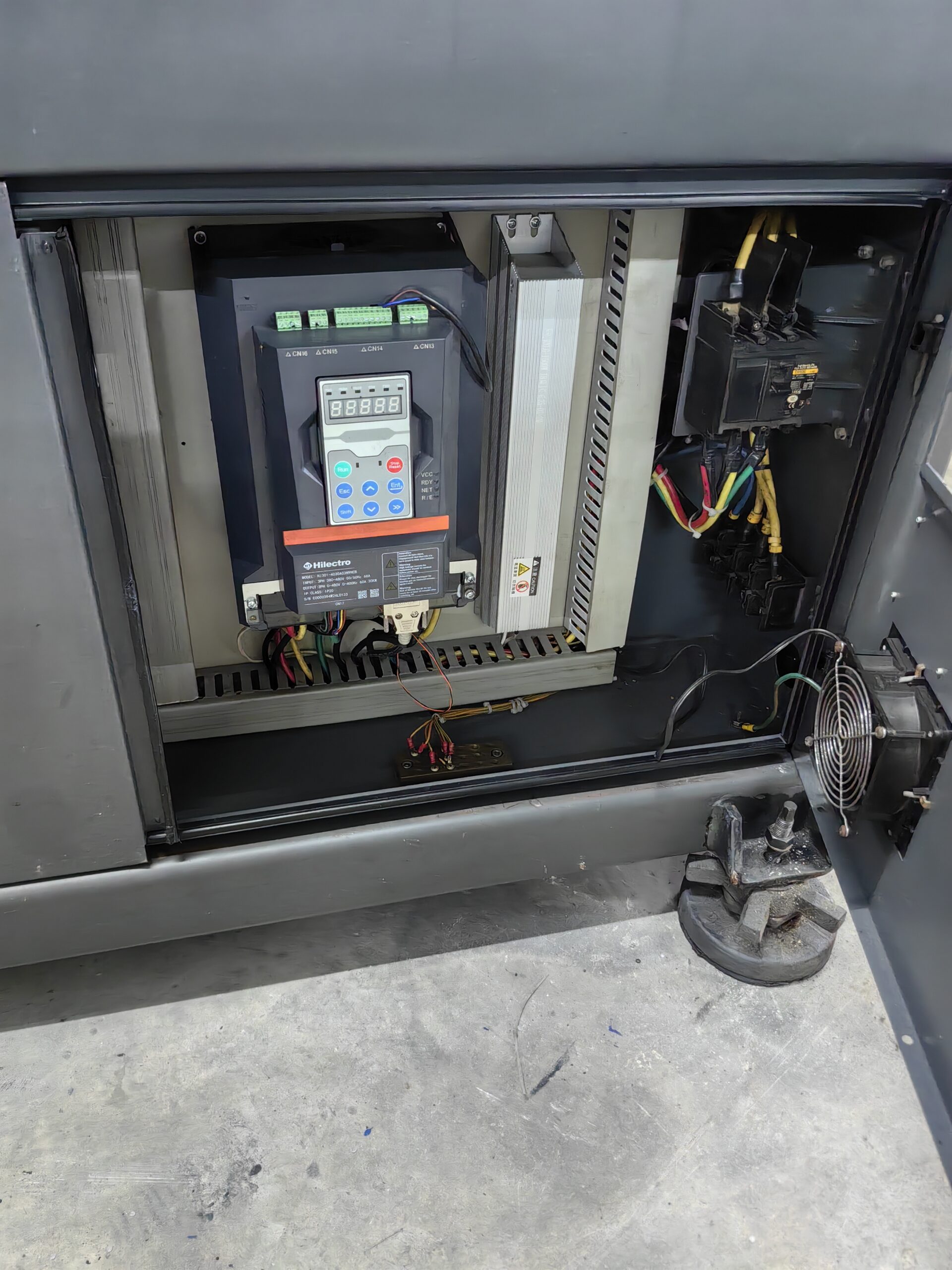

second-hand Haitian 250-ton servo injection molding machine details

Technical Parameters

CategoryParameterABC







Injection Unit

Screw Diameter505560
Screw L/D Ratio222018.3
Shot Size (Theoretical)497601715
Injection Weight (PS)452547651
Injection Rate173210250
Injection Pressure205169142
Plasticizing Capacity (ps)27.035.144.1
Screw Speed0 – 180







Clamping Unit

Clamp Tonnage2500
Toggle Stroke540
Space Between Tie Bars570X570
Max.Mold Height570
Min. Mold Height220
Ejector Stroke140
Ejector Tonnage62







Others

Max. Pump Pressure16
Pump Motor Power22
Heater Power16.65
Machine Dimension (L×W×H)5.76×1.46×2.15
Machine Weight7.7
Hopper Capacity50
Oil Tank Capacity370
